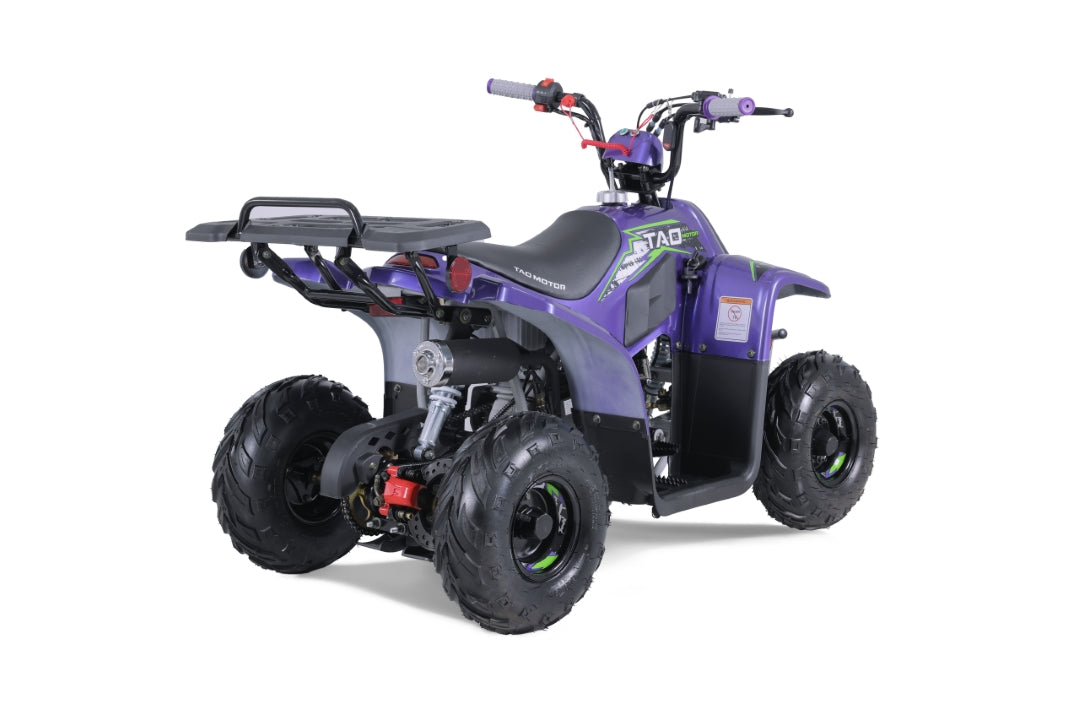

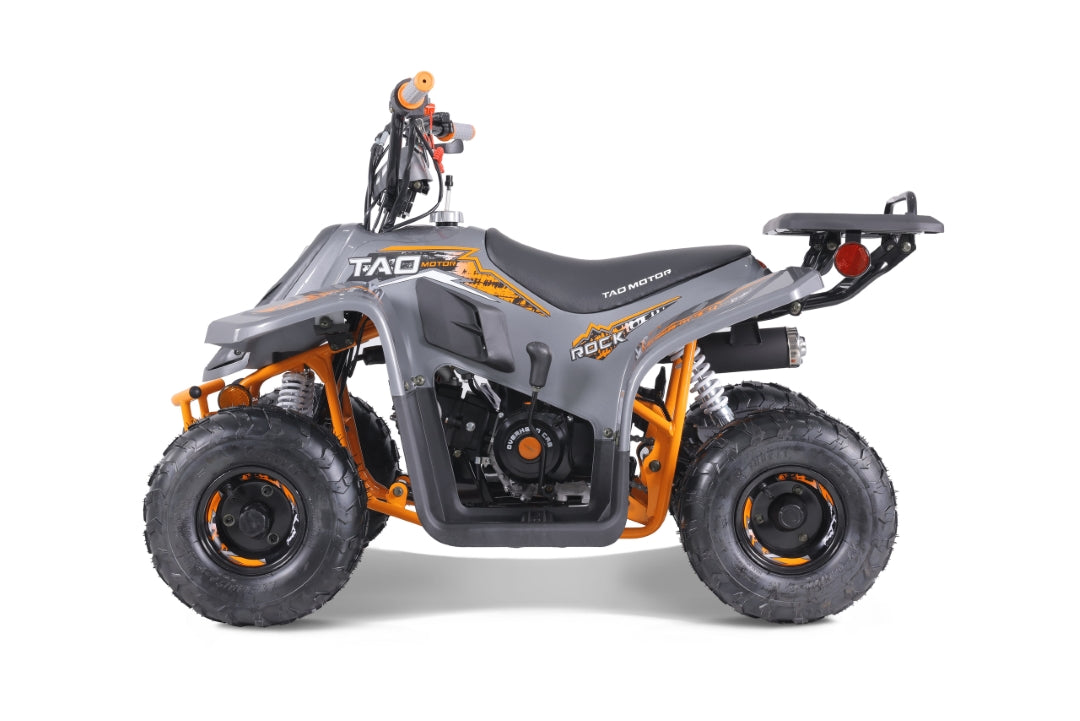

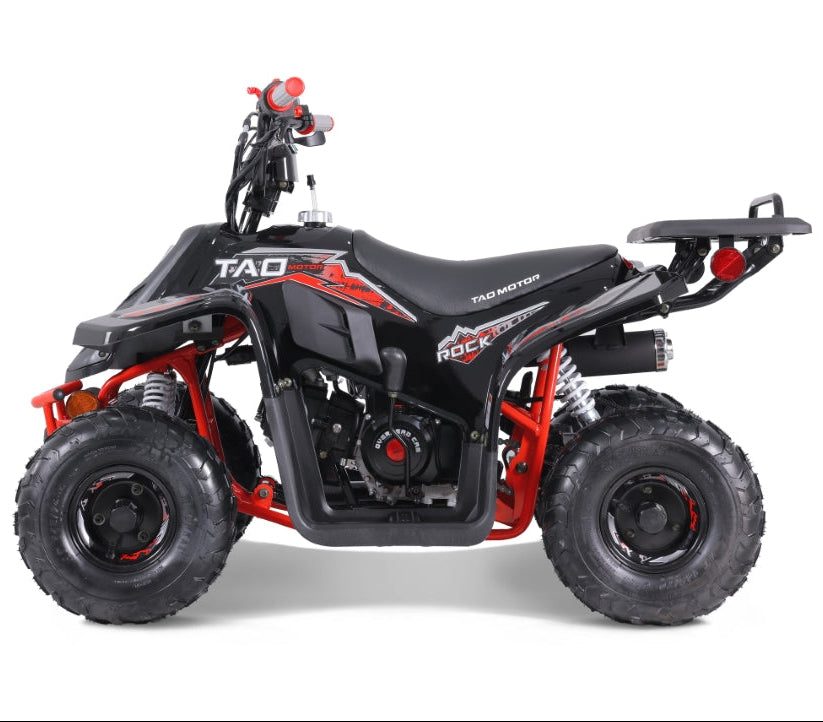

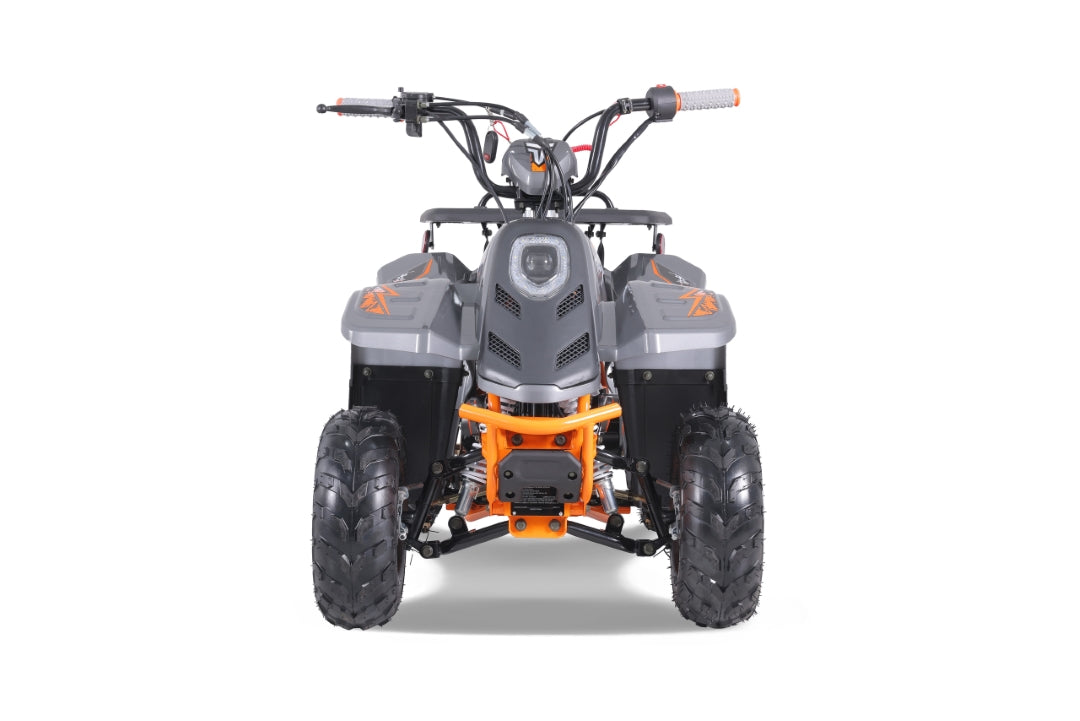

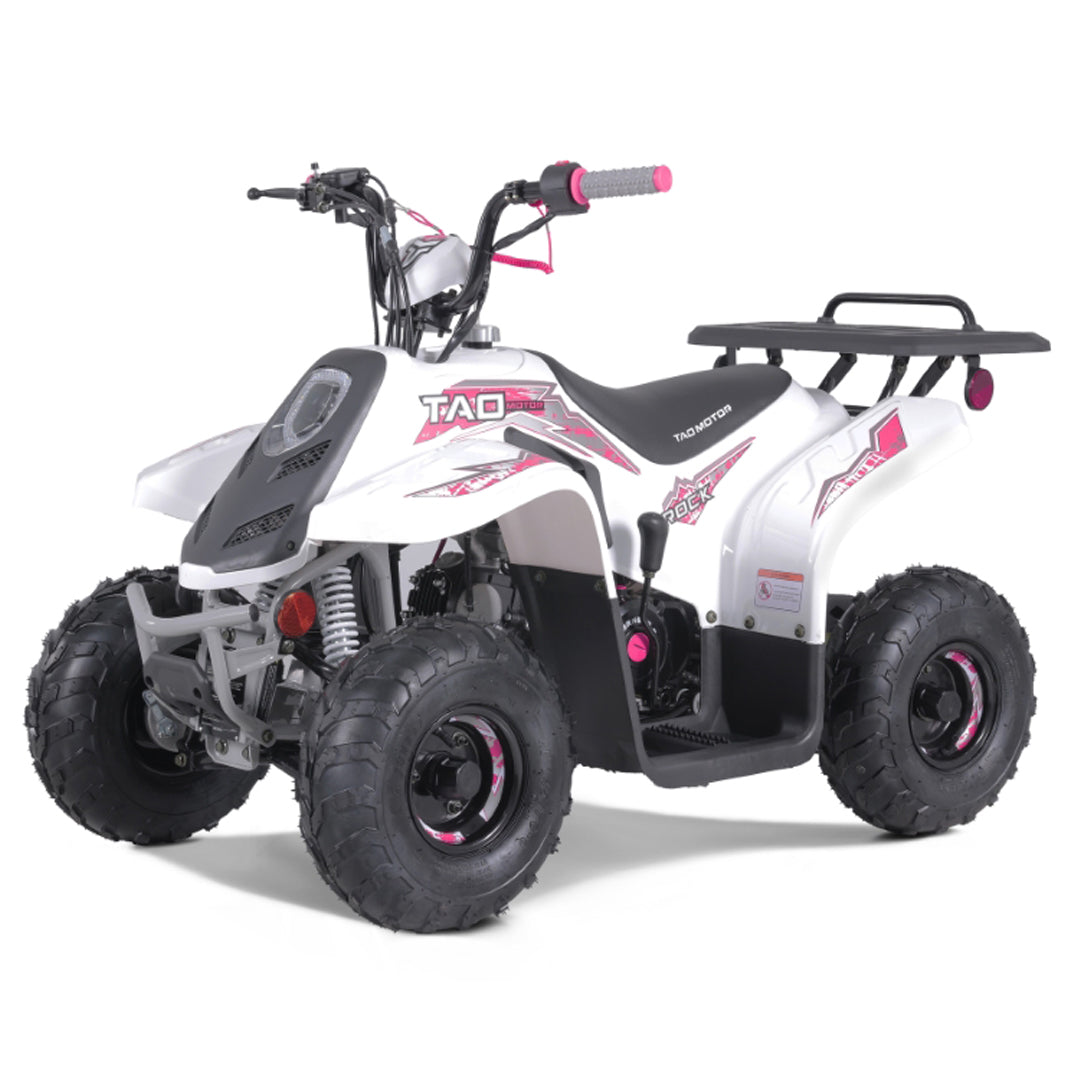

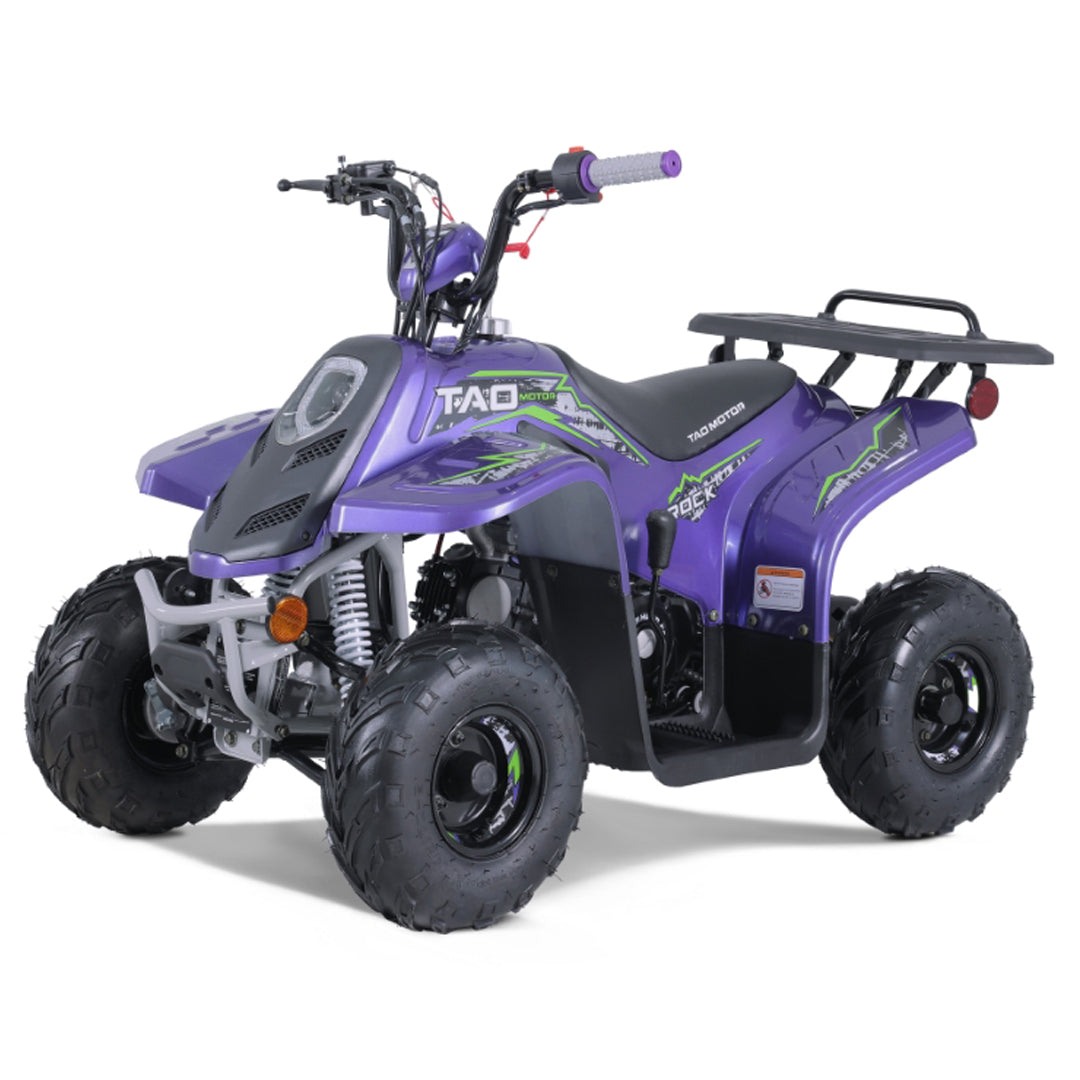

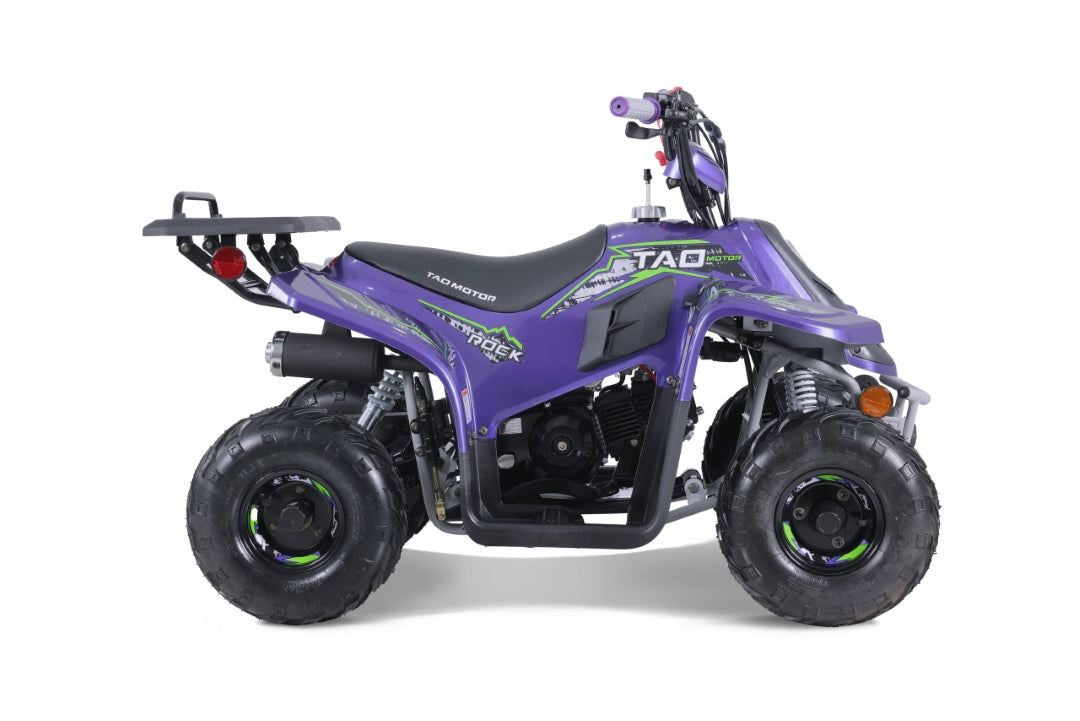

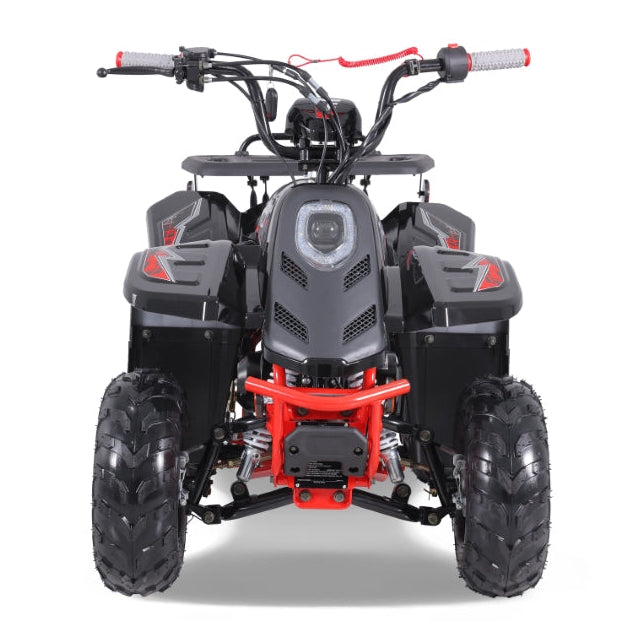

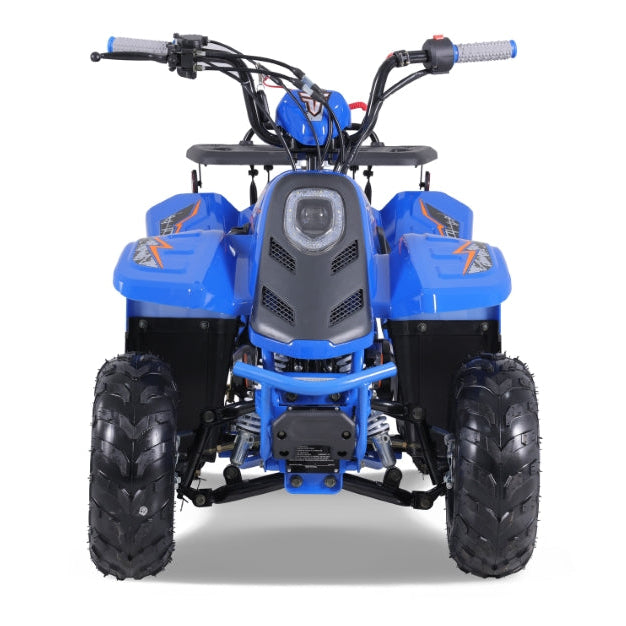

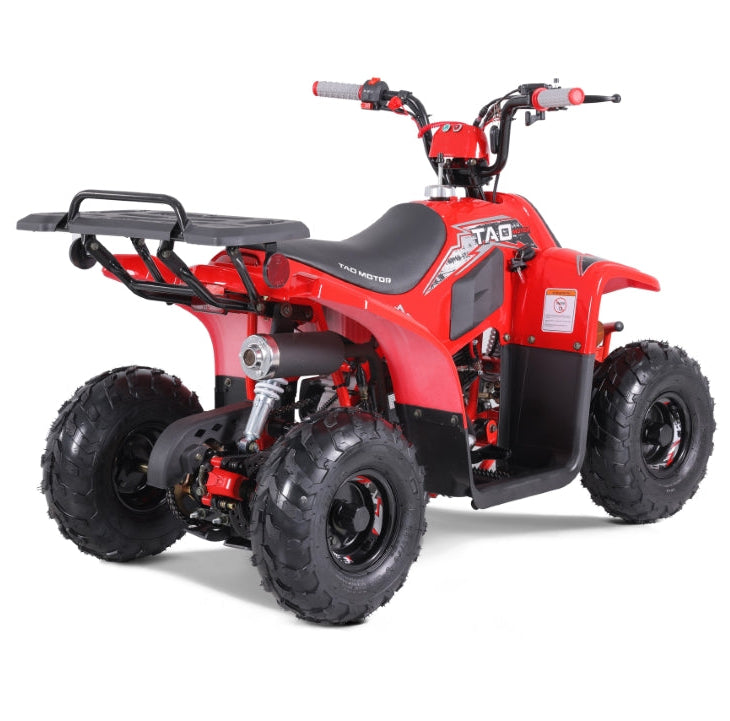

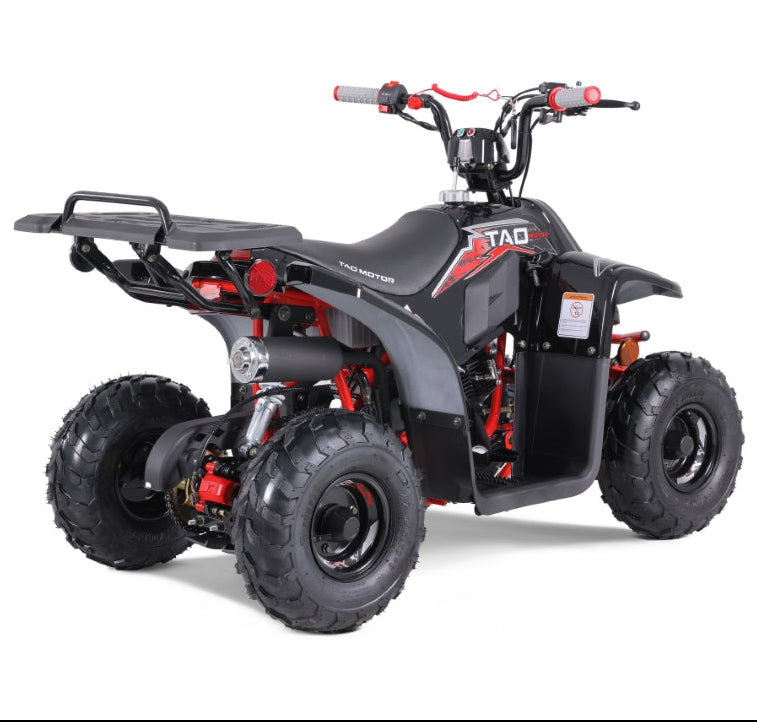

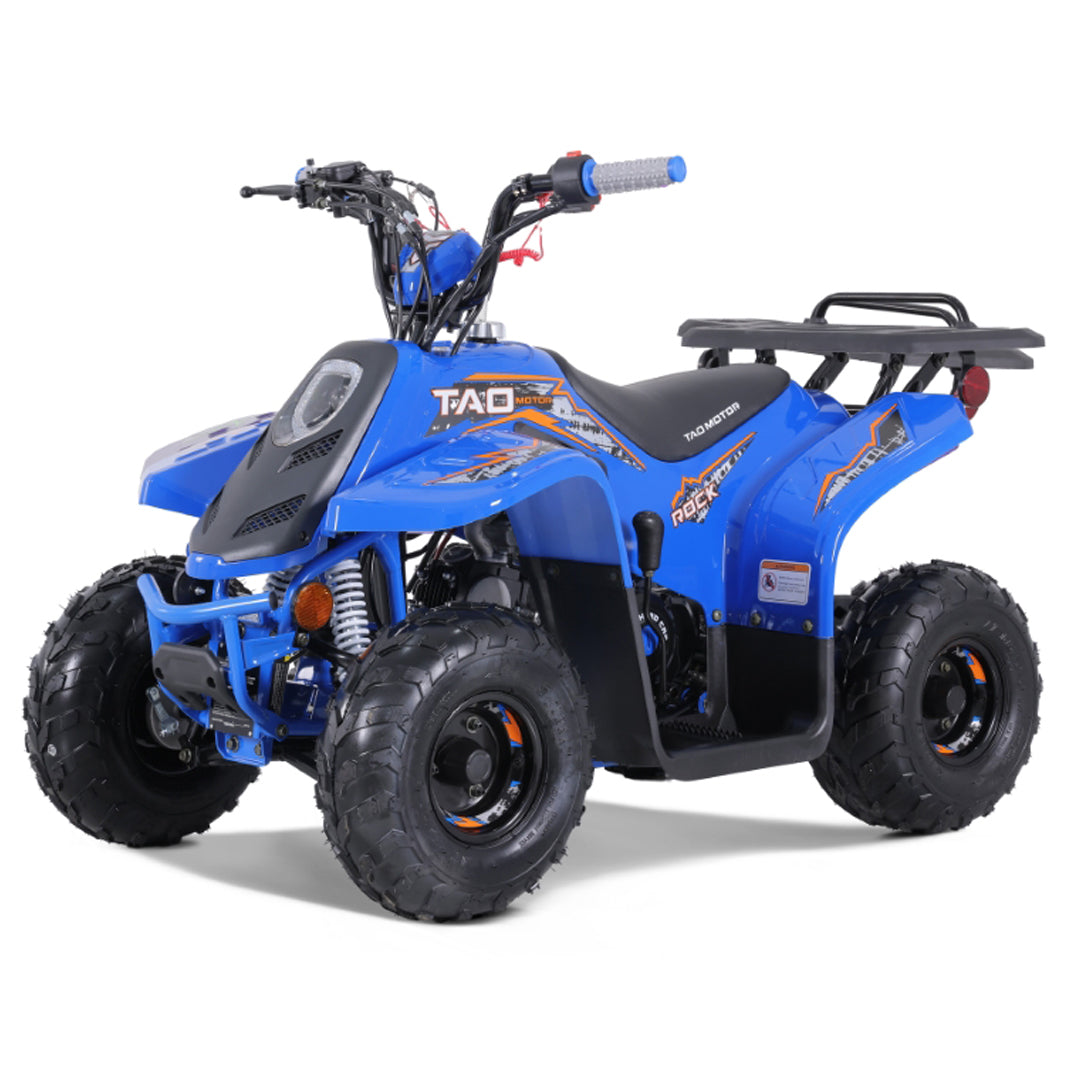

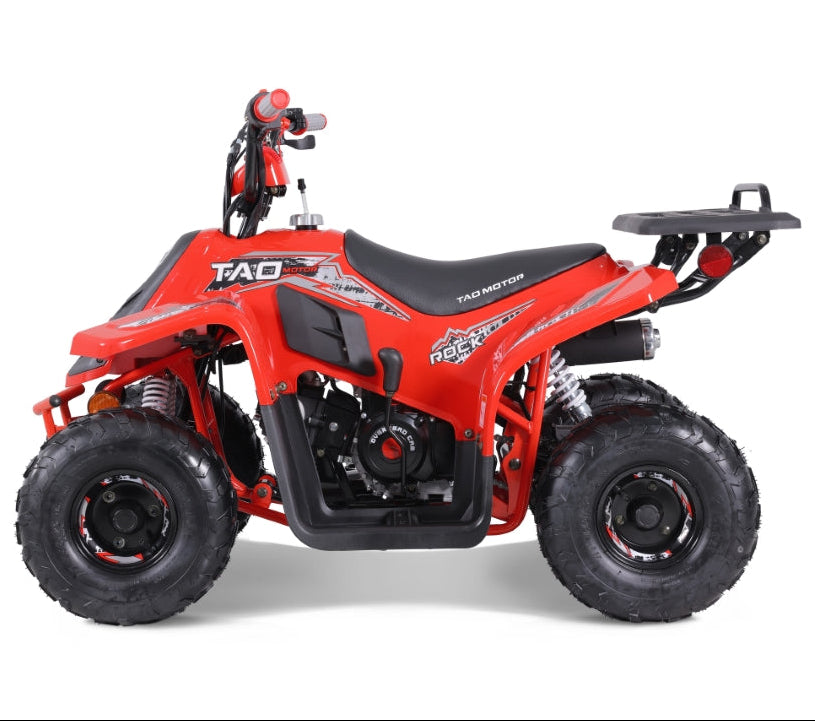

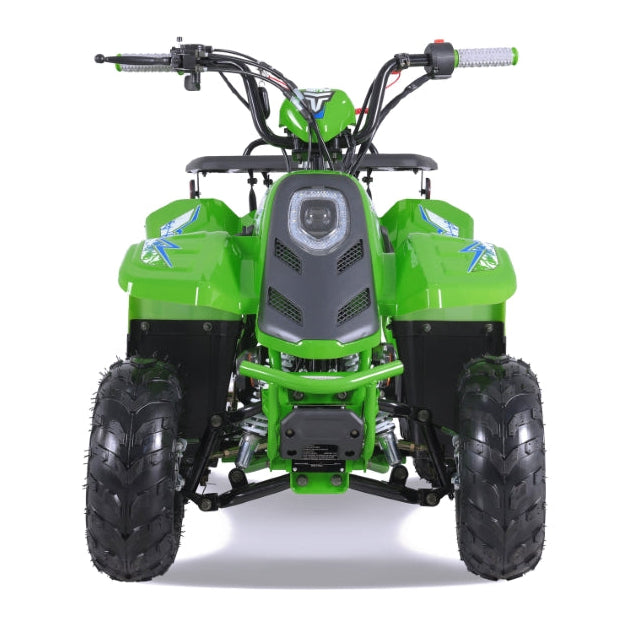

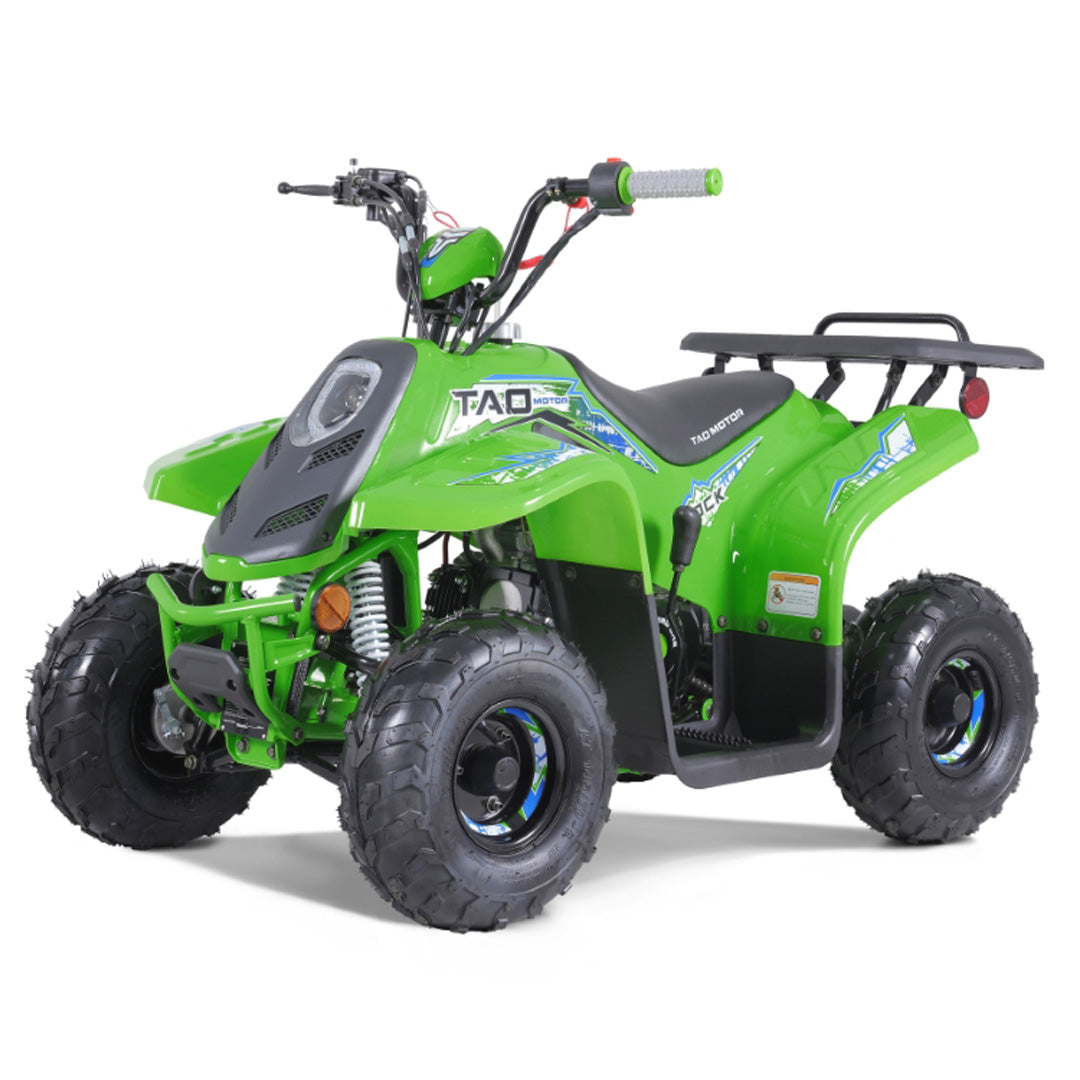

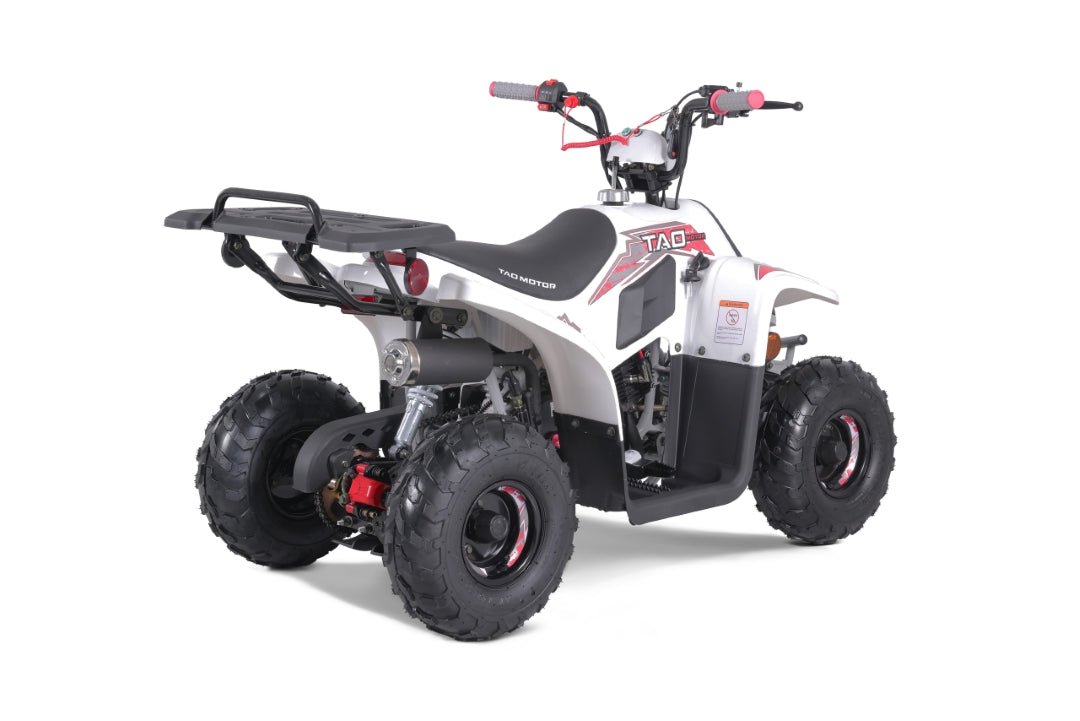

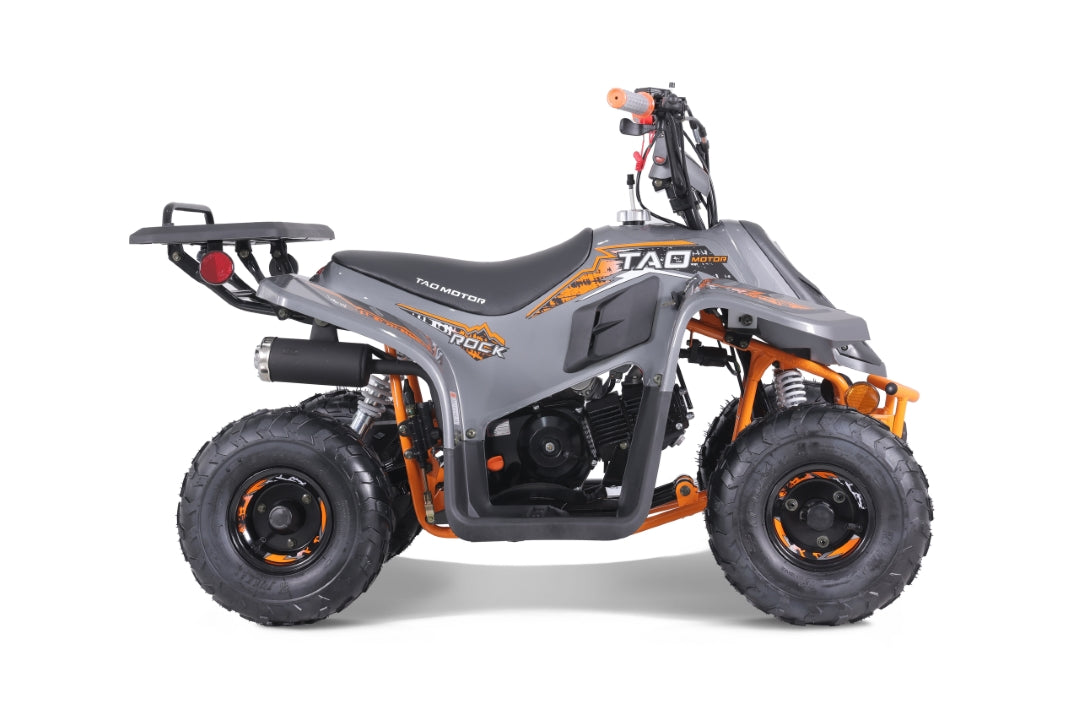

Tao Motors, New Rock 110, Gasoline Quad (110cc) (4 Stroke) (5 Years+)
The New Rock 110 has also been a fan favorite for years, and rightly so. A youth-sized gas ATV with sport styling and reverse gear, it has all the safety features parents demand. Continuing the trend of upgrades and redesigns like we did with the Boulder, we decided to do a complete redesign on the Rock 110 as well.
The all-new New Rock 110 still features our 107cc 4-stroke engine that runs forward and reverse, with 6-inch wheels and tires, plus our same great safety features like wireless power off. distance for an extra layer of protection and a cruise control limiting the maximum speed, set by the parents.
While we've kept the best features of the New Rock 110 , like the Boulder, a completely new color selection is now available. And not only does it look brand new, the New Rock 110 also features upgraded components, making it a top choice for your beginner rider, at an affordable price.
Its low seat height of 23 inches and stable wheelbase give the New Rock the perfect size for kids just starting out. It is equipped with several safety features to keep parents in control, including a speed limiter and remote control with engine shutdown (Kill Switch), and a parking brake.

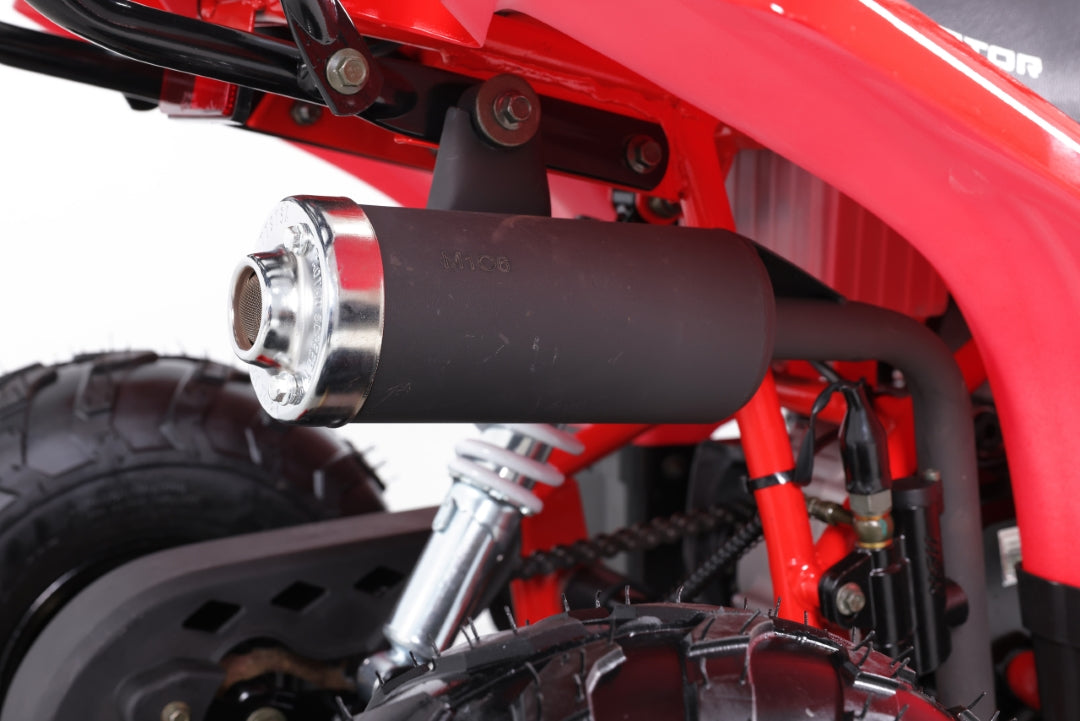

A sturdy steel frame and full suspension combined with all-terrain tires make the New Rock ready for the toughest trails. Parents can hold the remote in their hand and press the button to stop the engine. The remote will work within a range of 20 to 30 feet . It has a spark arrestor and an improved emission system!
The fully automatic transmission allows young children to learn one step at a time. While the (107cc) 4-stroke engine delivers enough power to keep older children entertained. Complies with new emission standards.

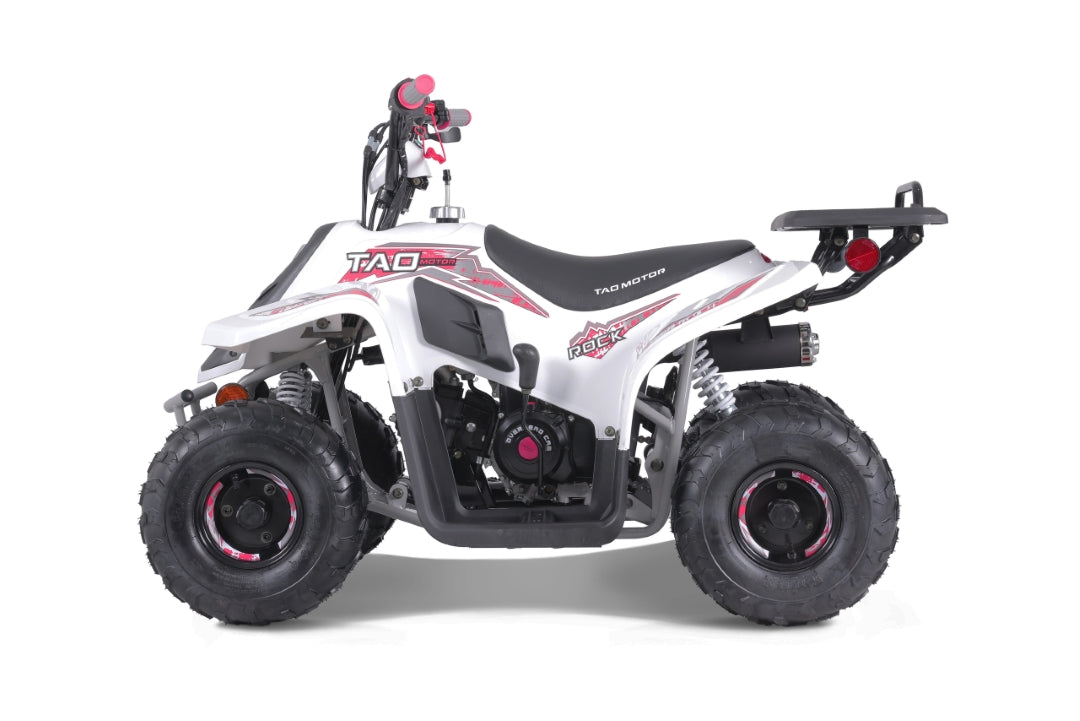

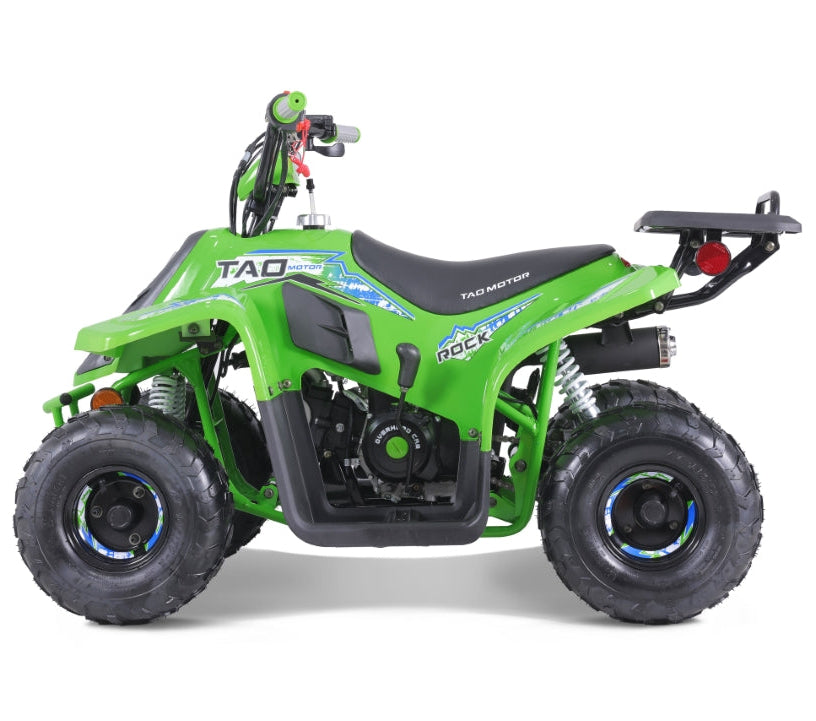

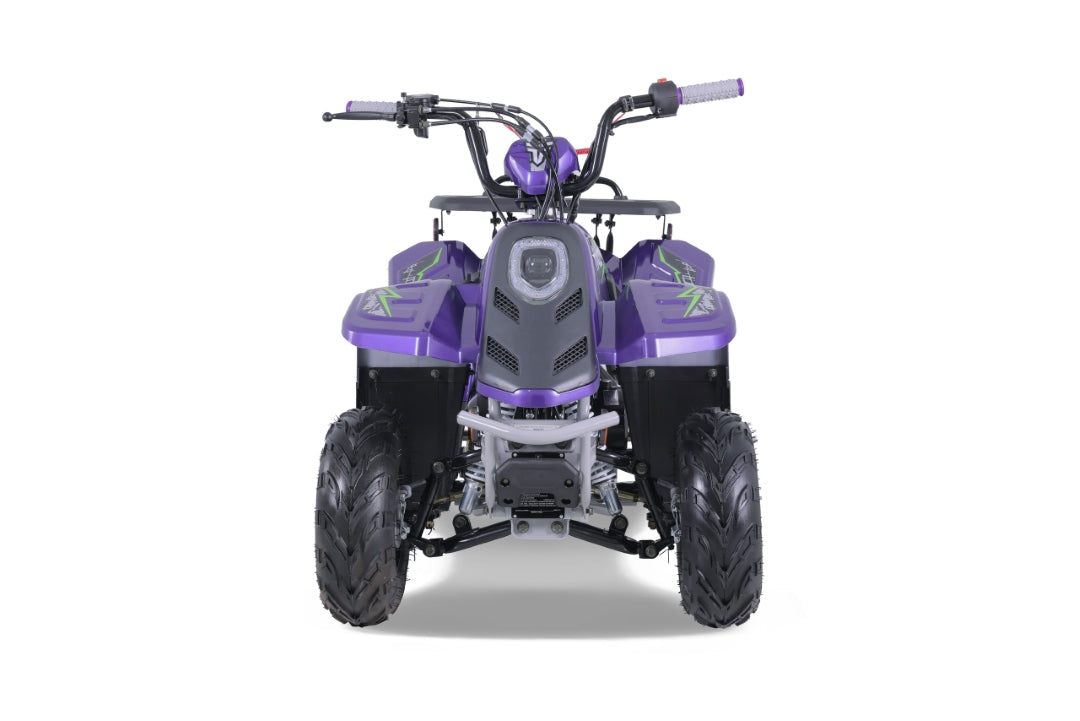

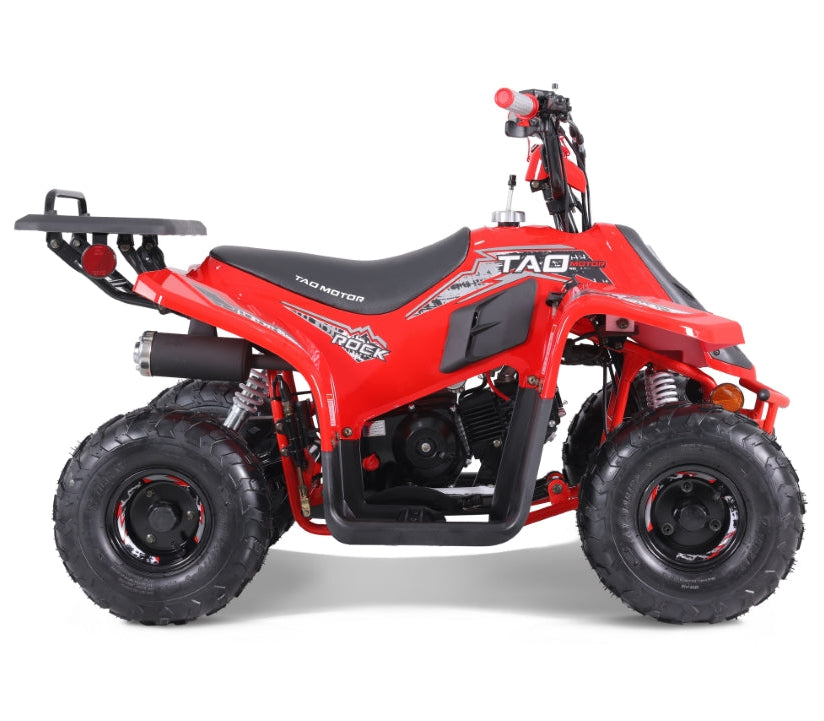

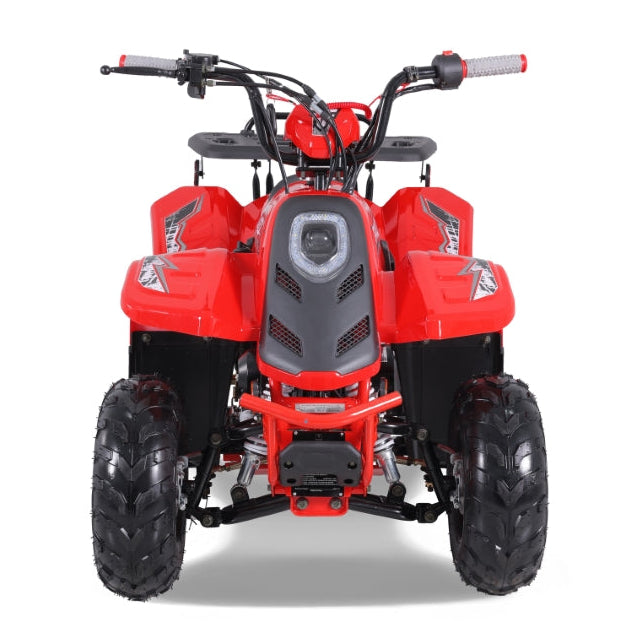

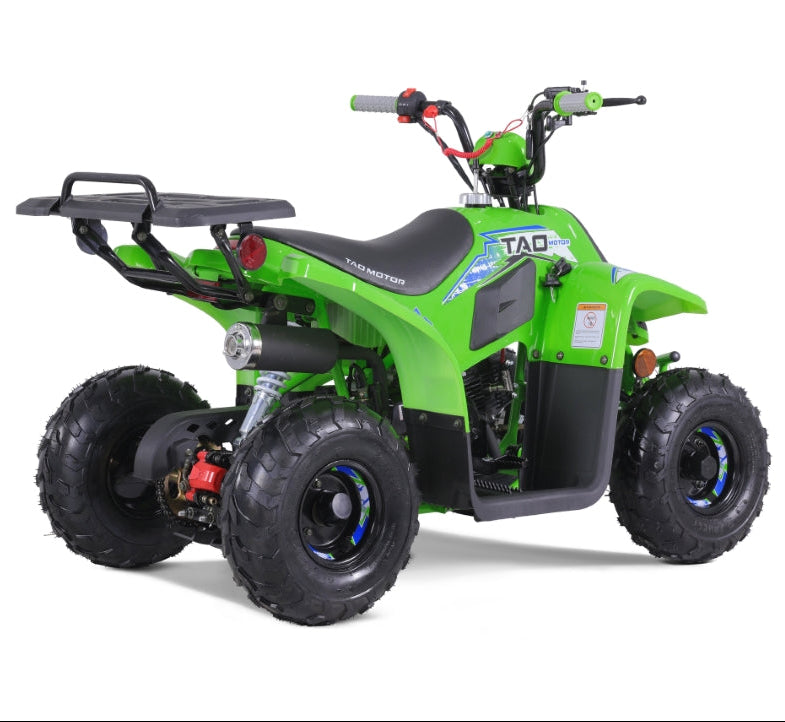

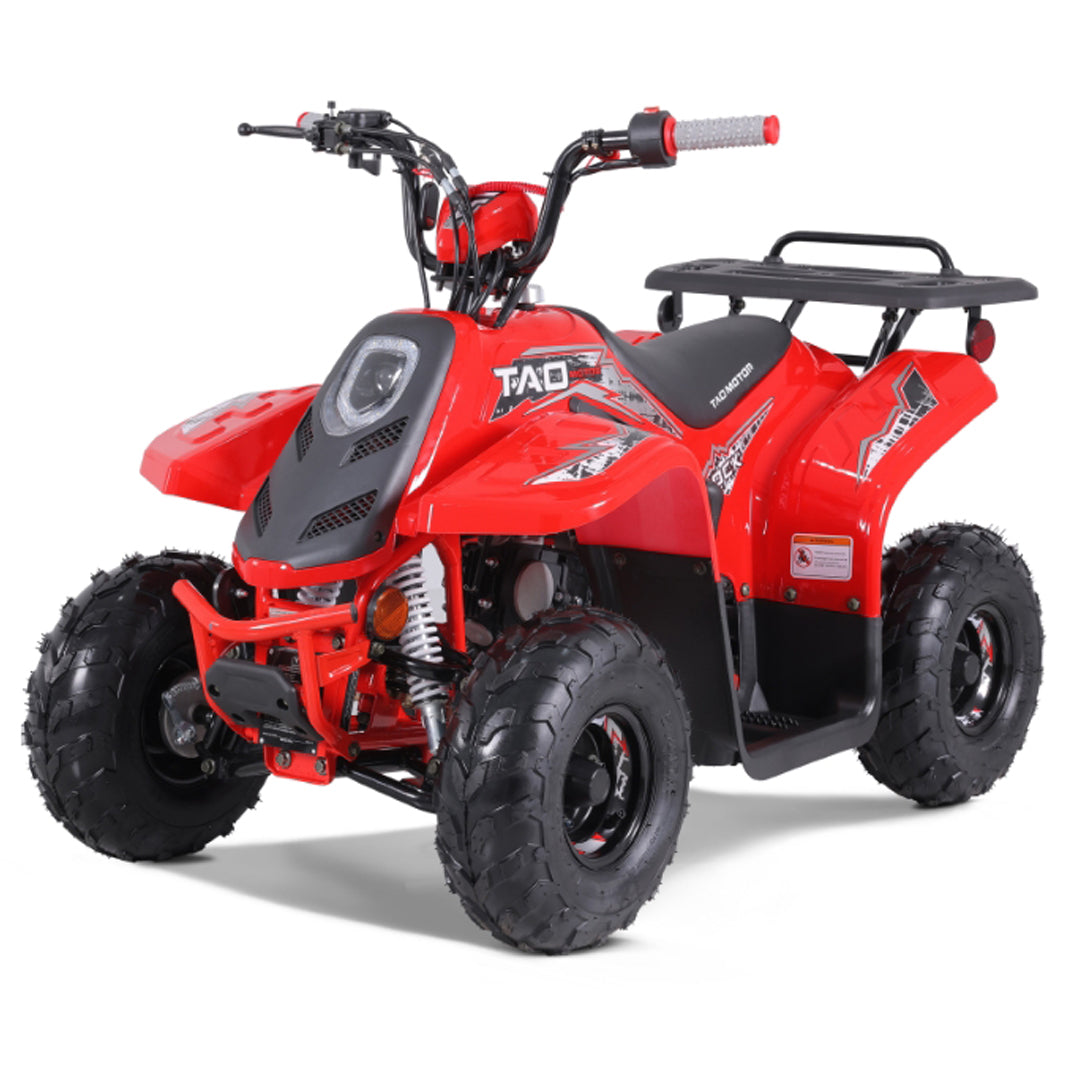

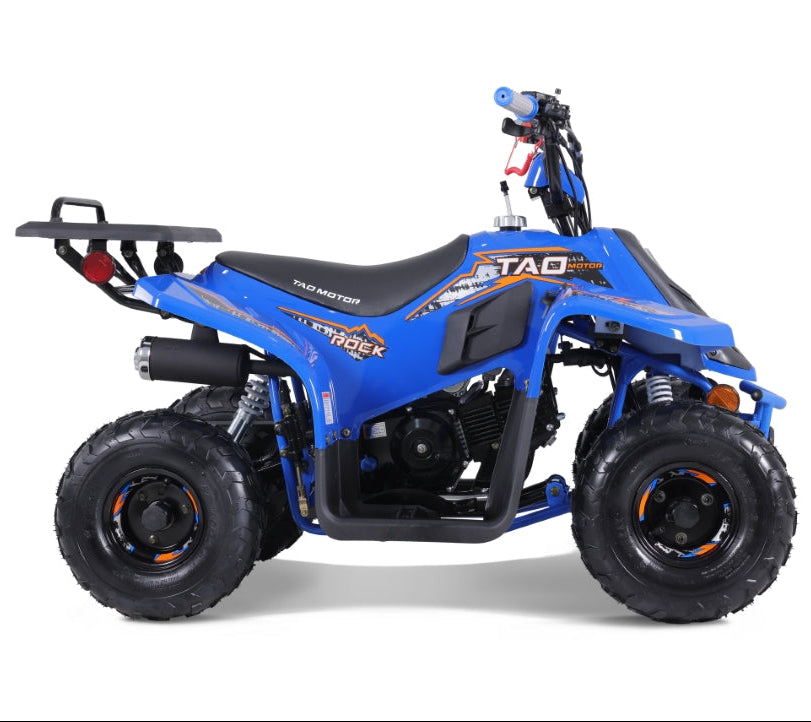

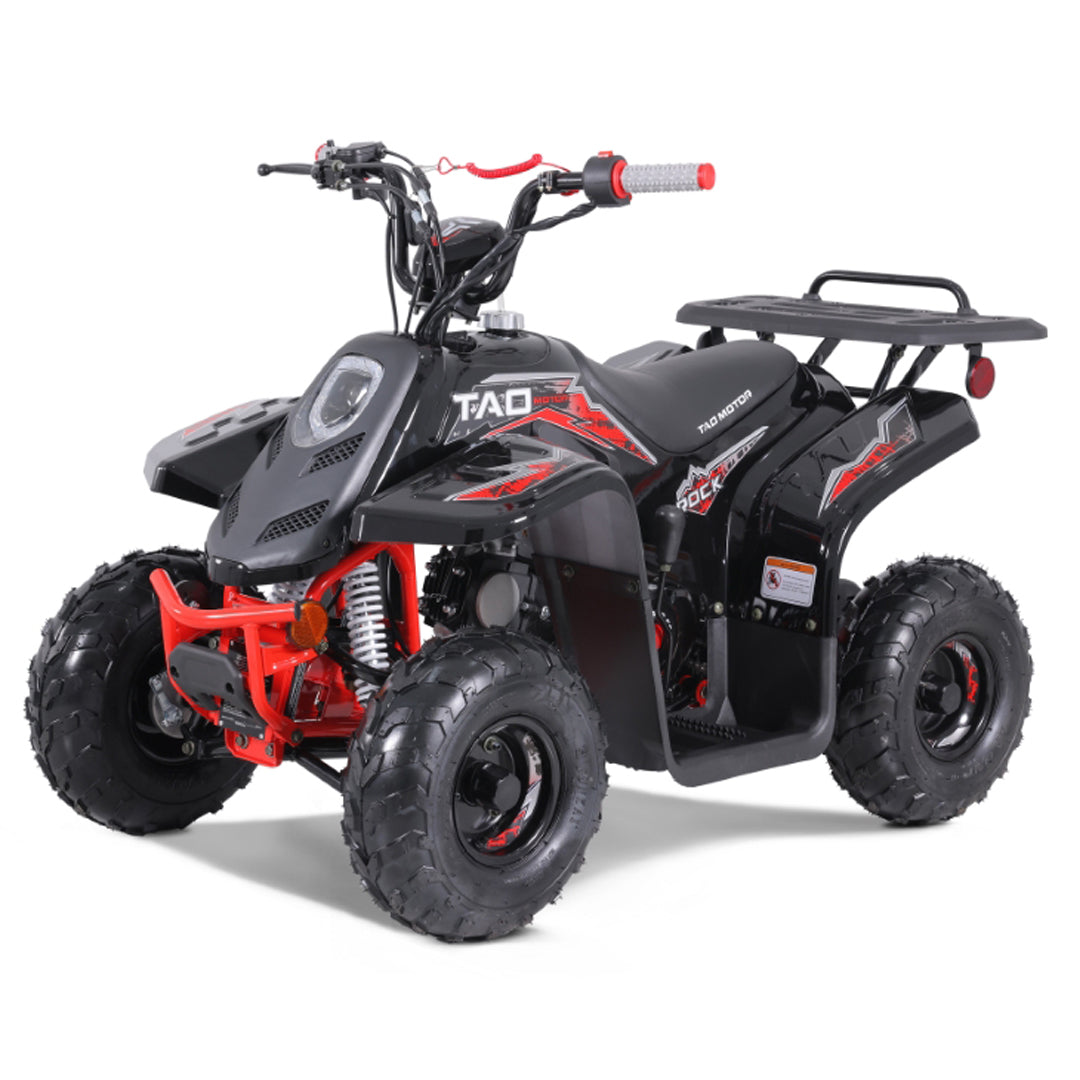

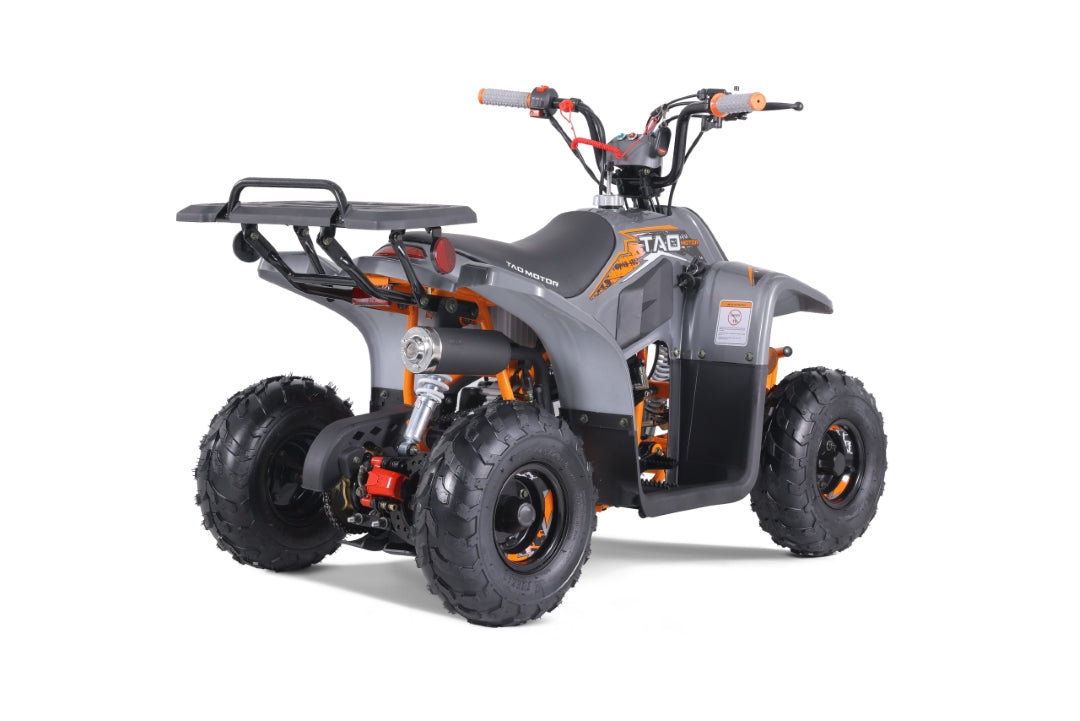

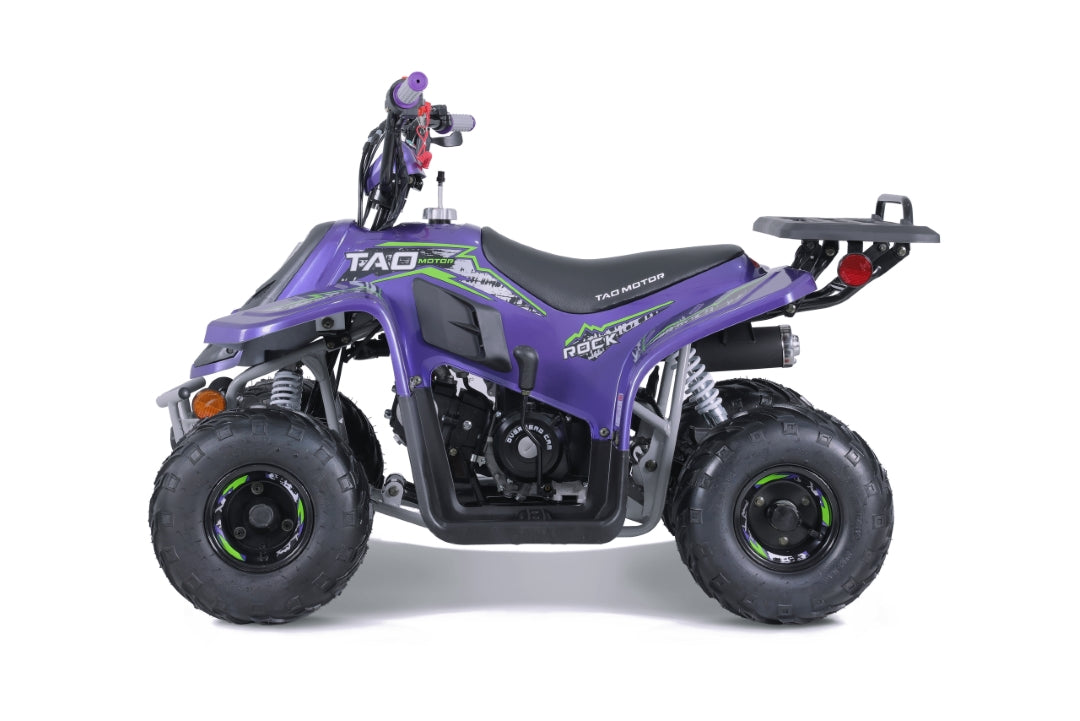

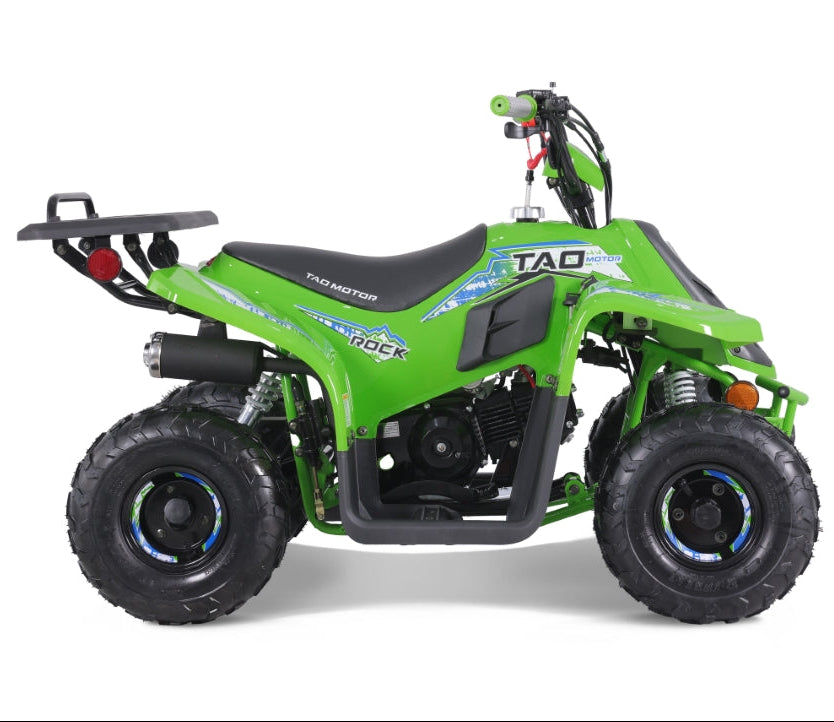

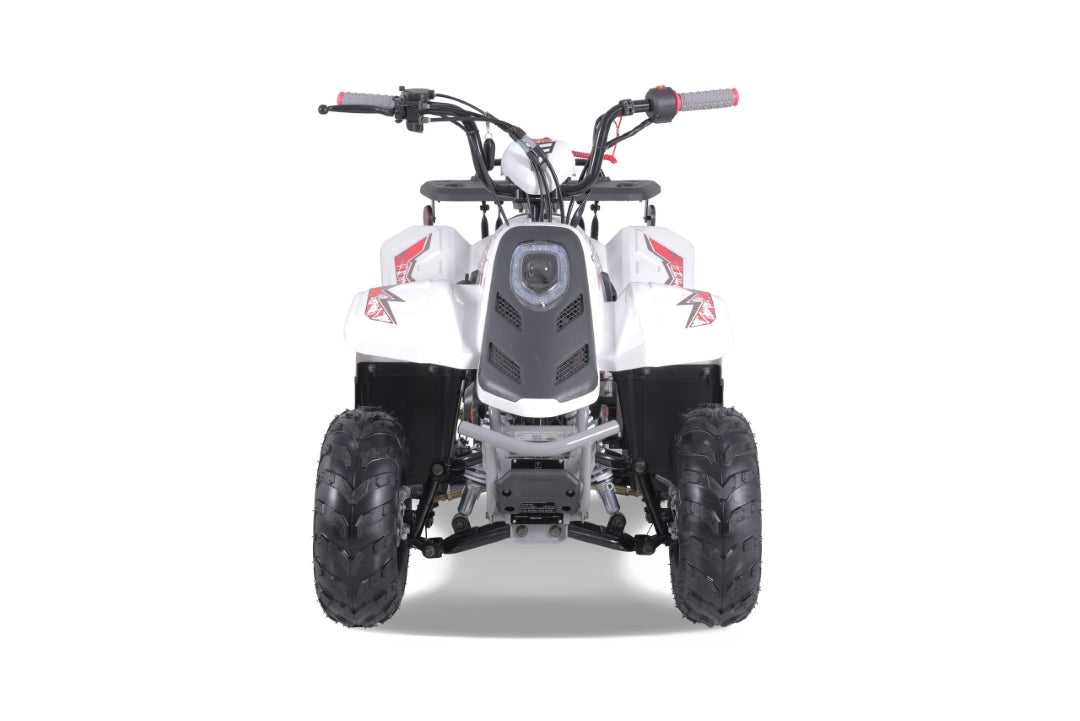

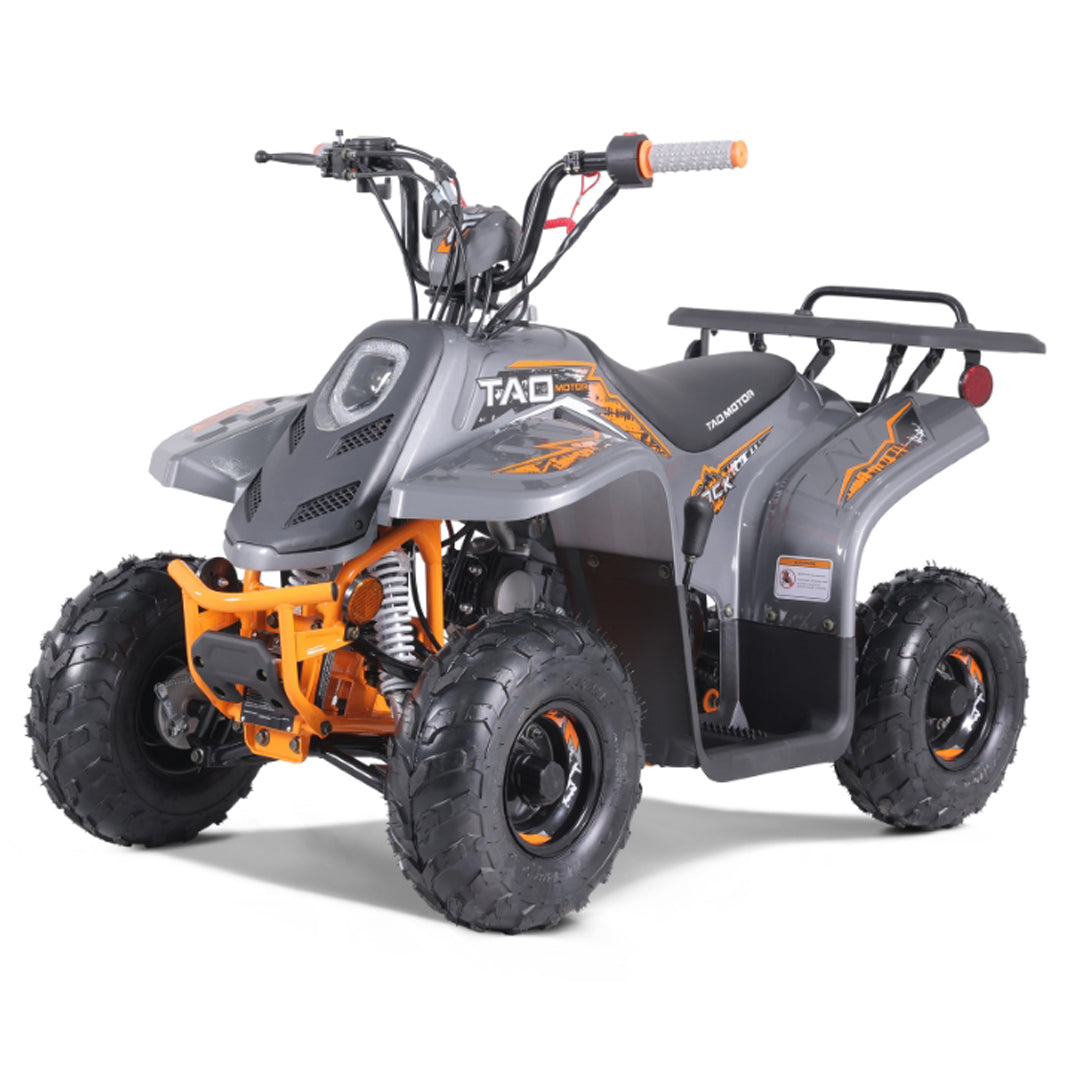

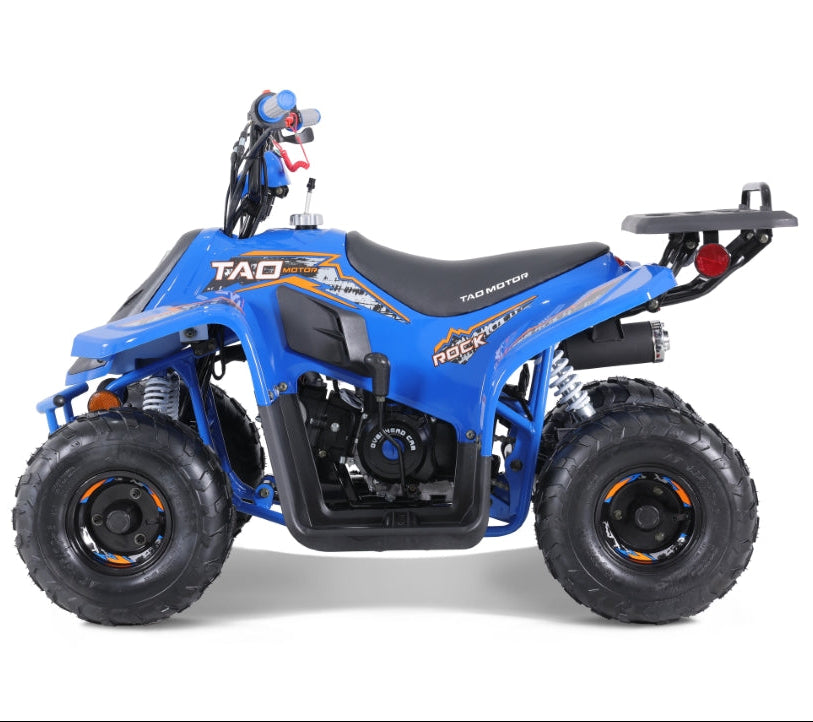

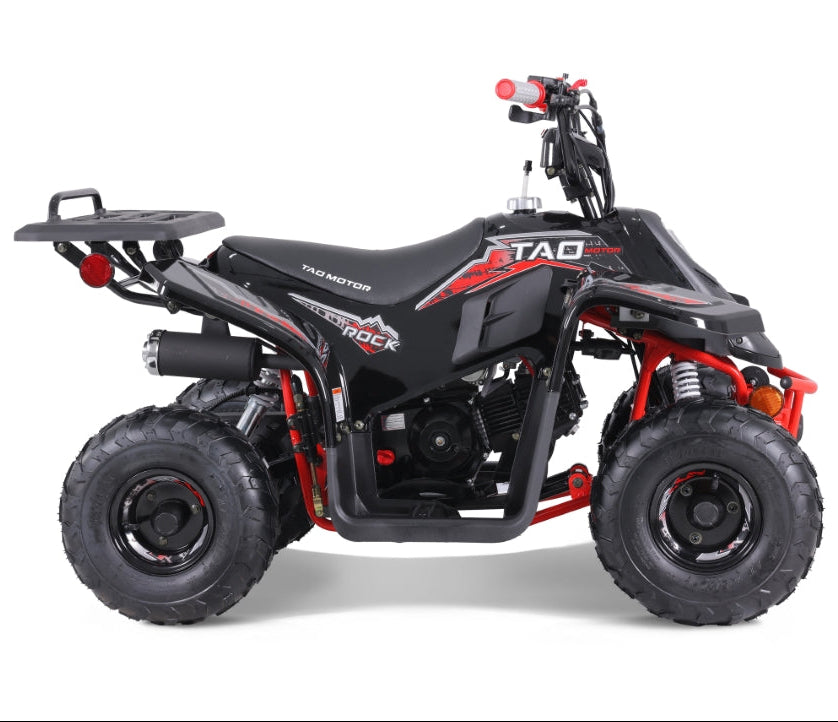

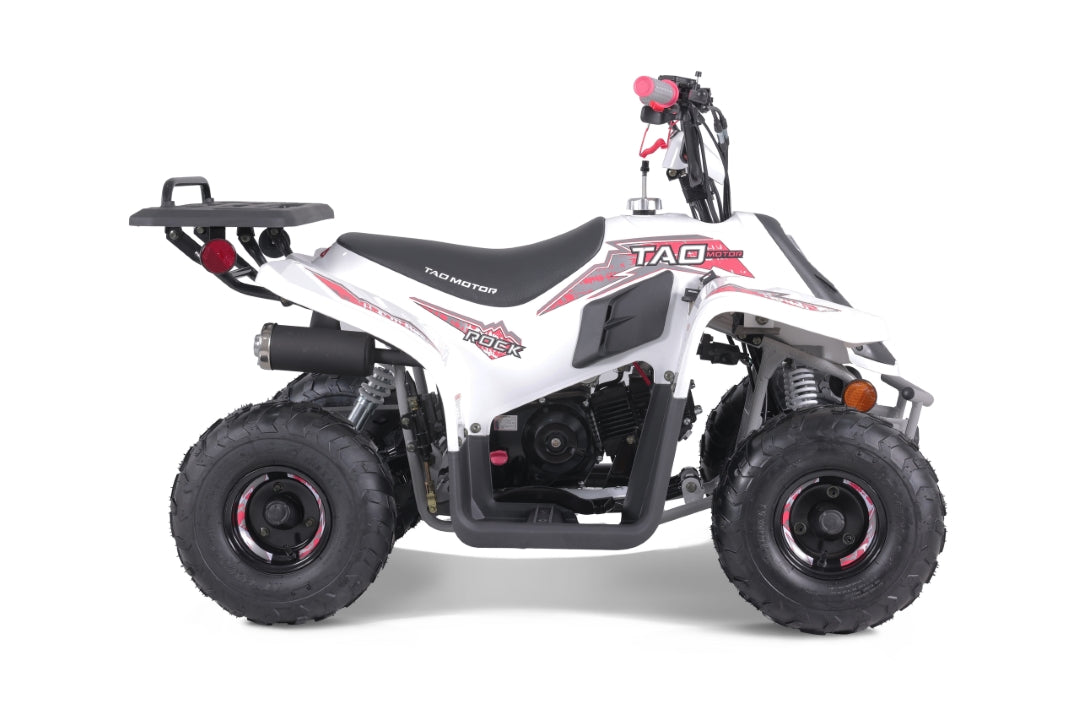

AVAILABLE COLORS: Black, Blue, Red, Orange, Green, Purple, White
HIGHLIGHTS

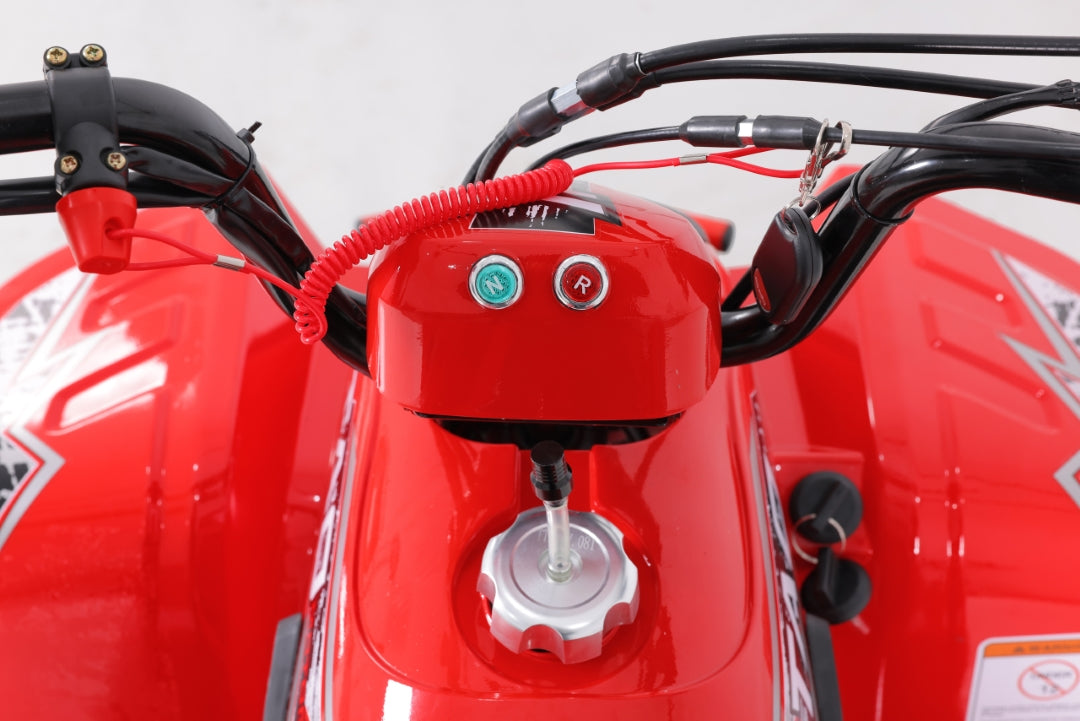

REMOTE CONTROL WITH ON\OFF AND ALARM SYSTEM
Power cut-off remote control, which allows you to shut off the motor from up to 90 feet away.
SPEED LIMITER
To reduce the maximum speed of the Quad, simply tighten the limiting screw a little more. Once your young driver is used to it, you can remove it.
SAFETY CORD
This belt attaches to the driver. If the driver falls from the Quad, this belt will disconnect and shut down the engine.

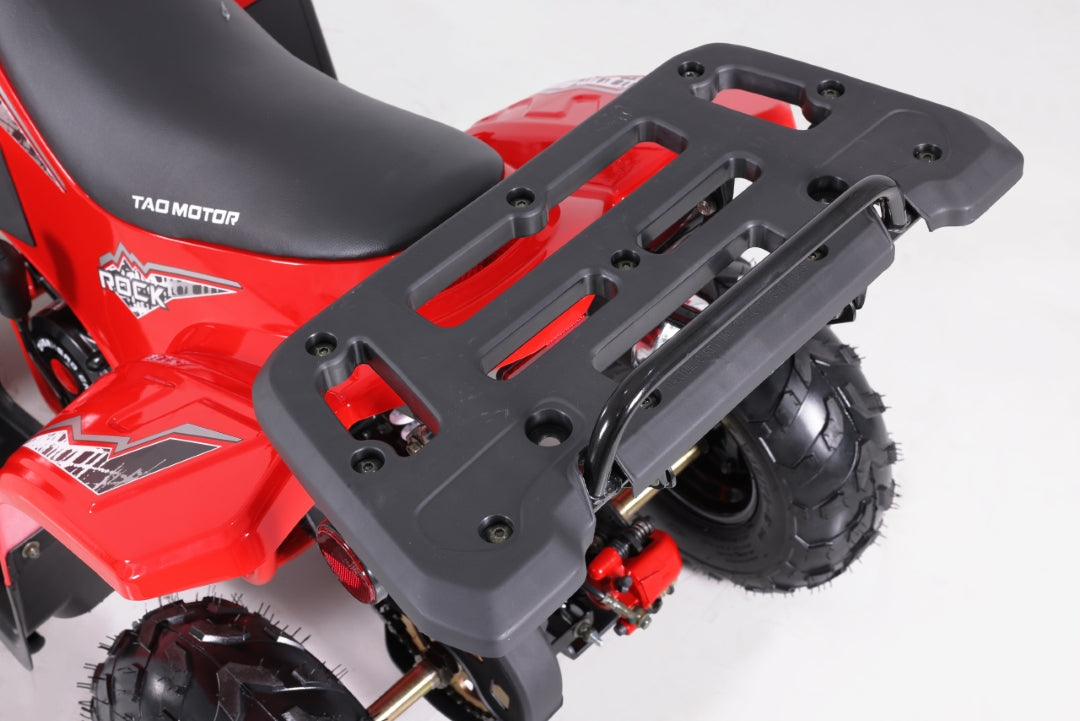

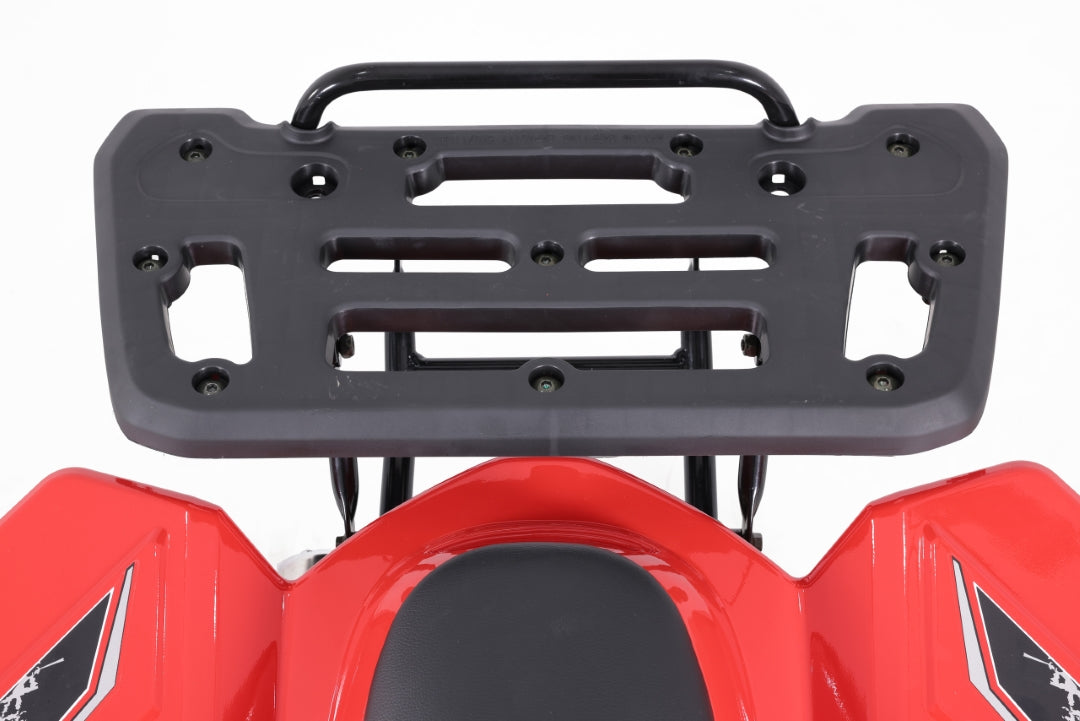

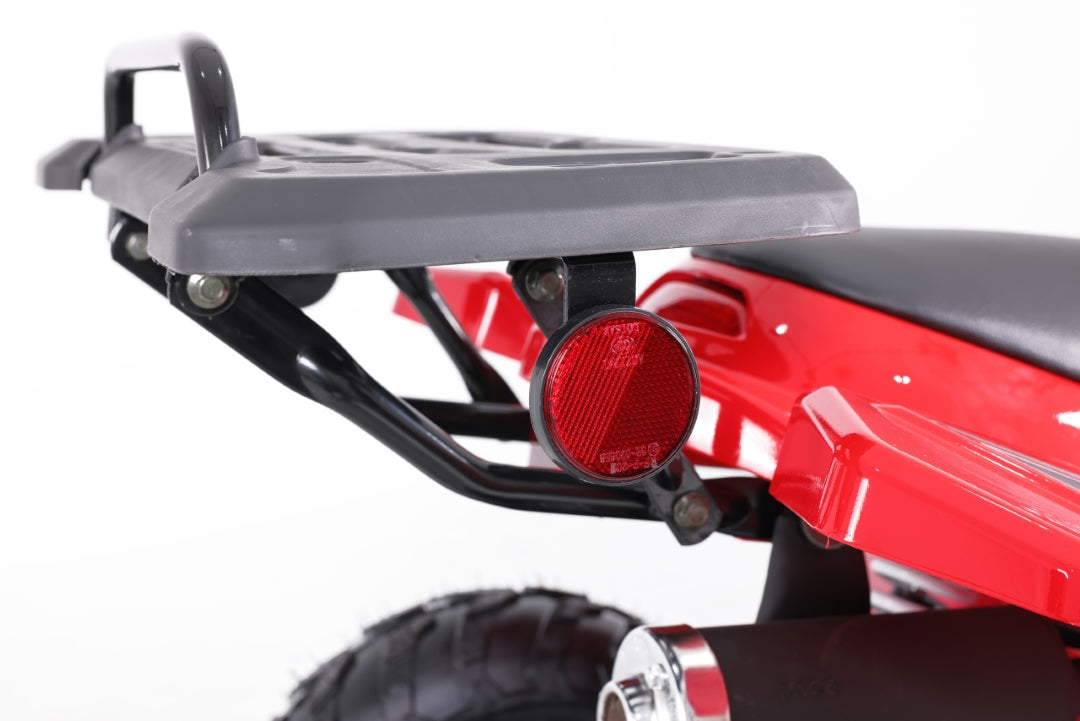

REAR LUGGAGE RACK
Rear luggage rack included to transport your items. It is also equipped with an off-road flag holder.
FEATURES
SECURITY
- Recommended age: 5 Years+
- Maximum load 60 Kg (132 pounds)

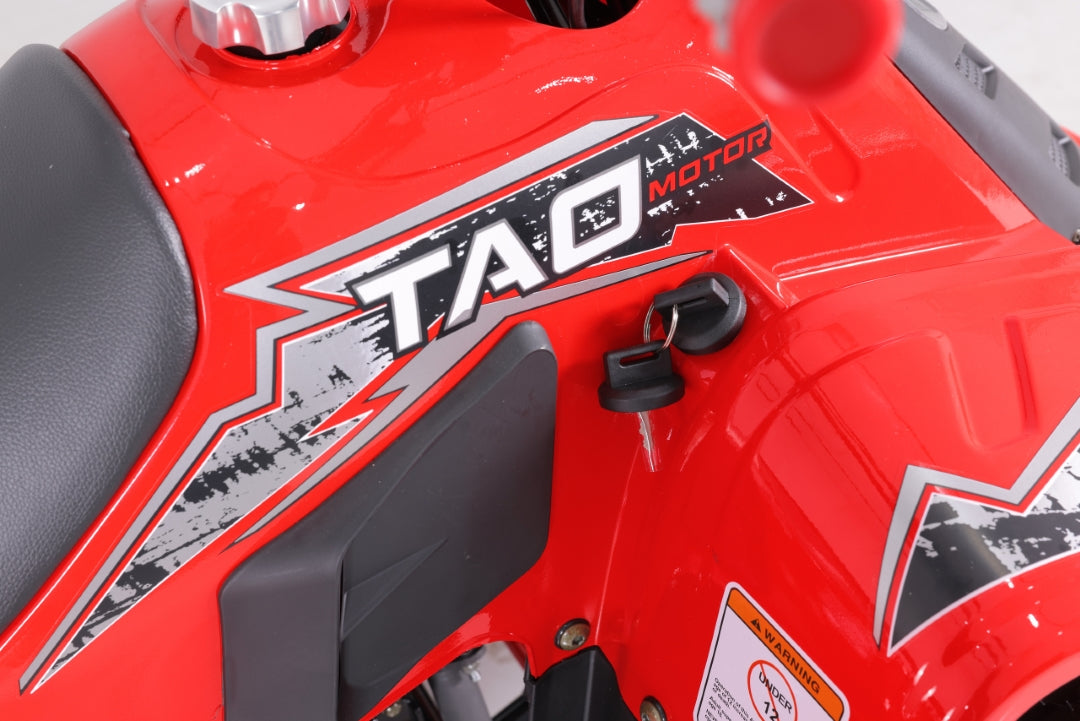

- Starting with key: (2x)
- Speed limiter: Yes
- Engine switch (Kill switch): Yes
- Remote control: Yes (Possibility of stopping the engine with the remote control)
- Approved EPA
- Front light, Rear light
MOTORIZATION

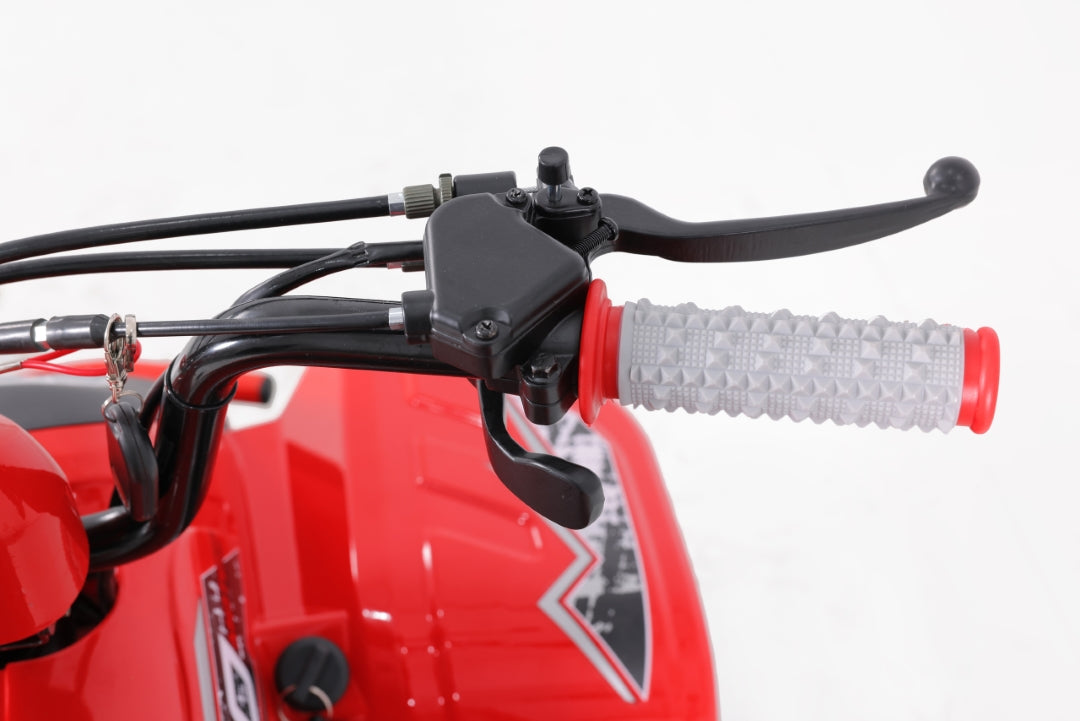

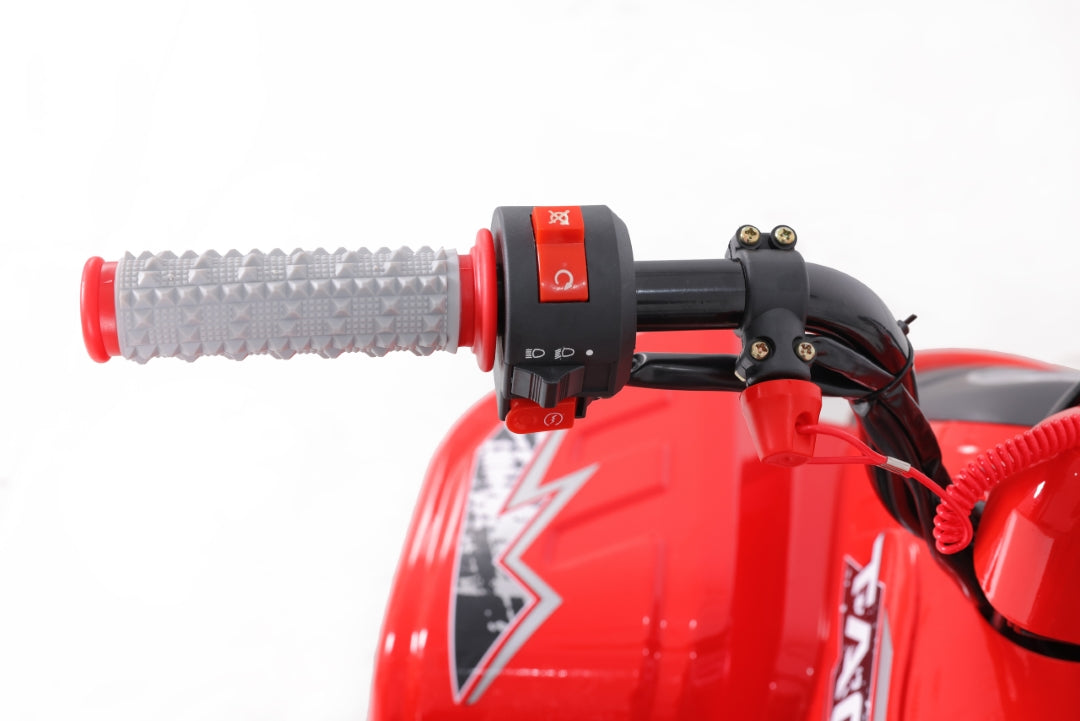

- Accelerator type: At thumb
- Startup type: Electric start

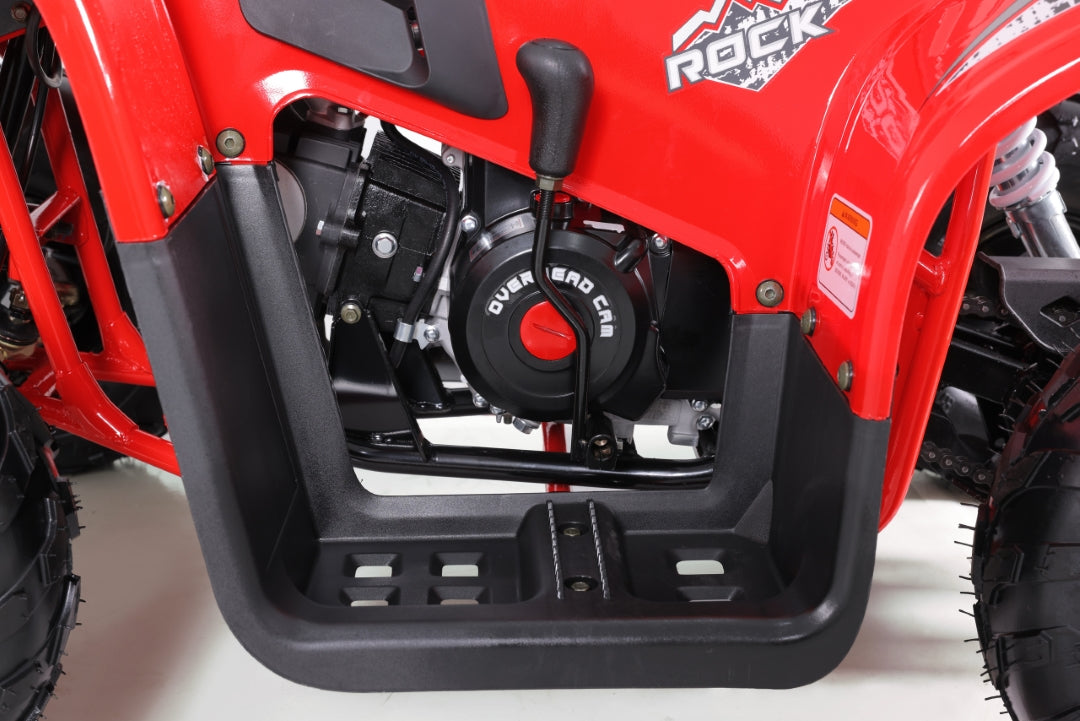

- Engine type: (107cc) ( 4-stroke) (1 Cylinder)
- Transmission: automatic, by chain (DNR)
- Transmission control with arm
- Maximum torque: 6.5Nm/5000-5500r/min
- Maximum speed: 50 Km/h (31 Mph) (can be limited to 5 Mph)
- Compression ratio: 9.5:1
- Bore Stroke: 52.4mm x 49.5mm
- Centrifugal clutch
- Slope climbing: 12 Degrees
- Acceleration sound level: less than 80db
- Fuel Capacity: 2.3 L (0.6 Gallon)
- Oil type: SAE 15W40
- Ignition: Permanent contract (Electronic ignition)
- Battery: 12V/5Ah
EQUIPMENT
- Front handbrake: Drum

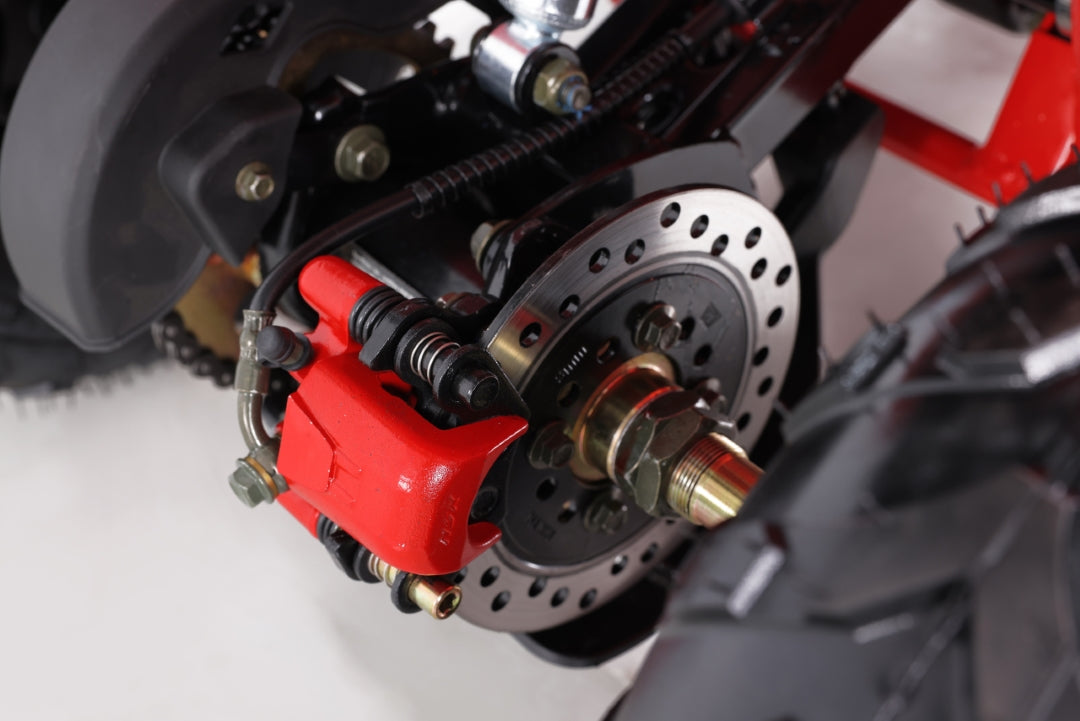

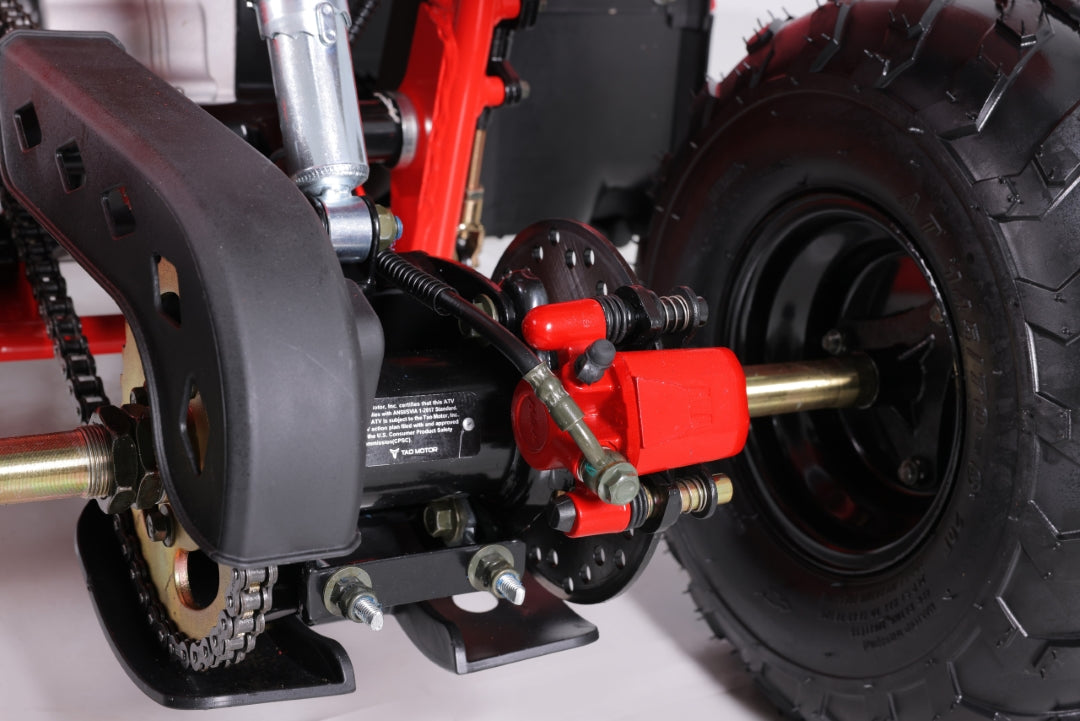

- Rear foot brake: Hydraulic disc
- Tires/Front 14.5x7-6
- Tires/Rear 14.5x7-6

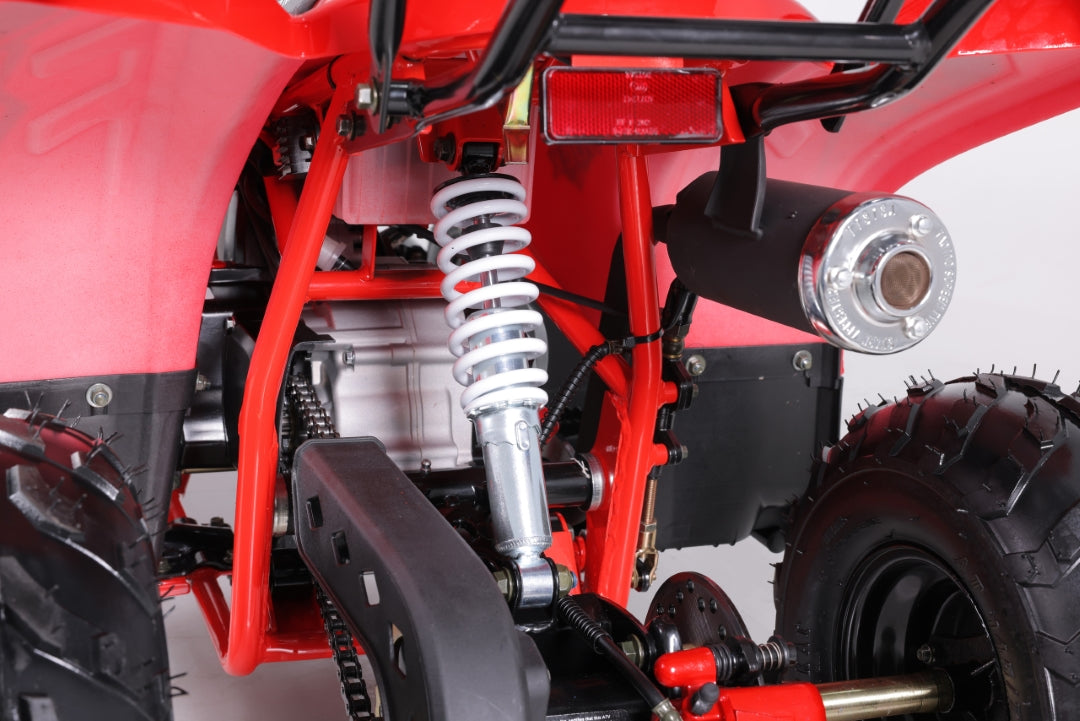

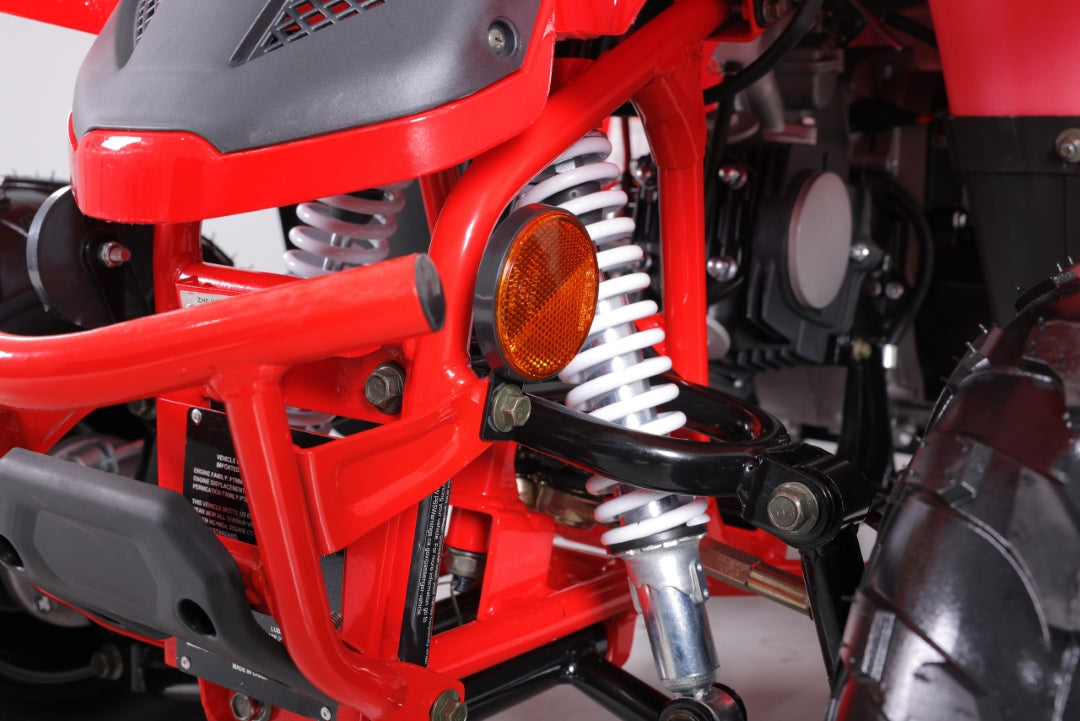

- Adjustable shock absorbers front and rear
- Red powder coated rear brake caliper
- Redesigned ergonomic gear selector
- High Performance Red Ignition Coil Wire

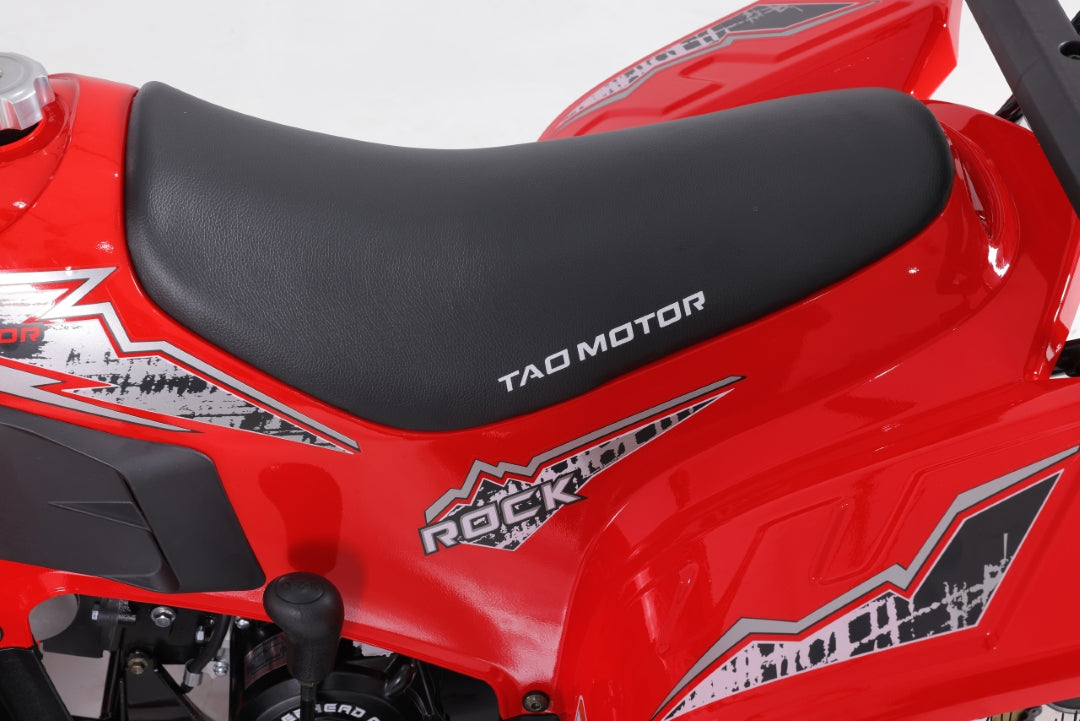

- Tao Motors brand seat
- Large luggage rack
- Powder coated color matched frame
- Super soft handles, color matched to the vehicle
- Color Assorted Timing Cap Set
- Color matched oil dipstick
- Color-matched aluminum fuel cap and vent cap
- Color-keyed metal swingarm skid plate

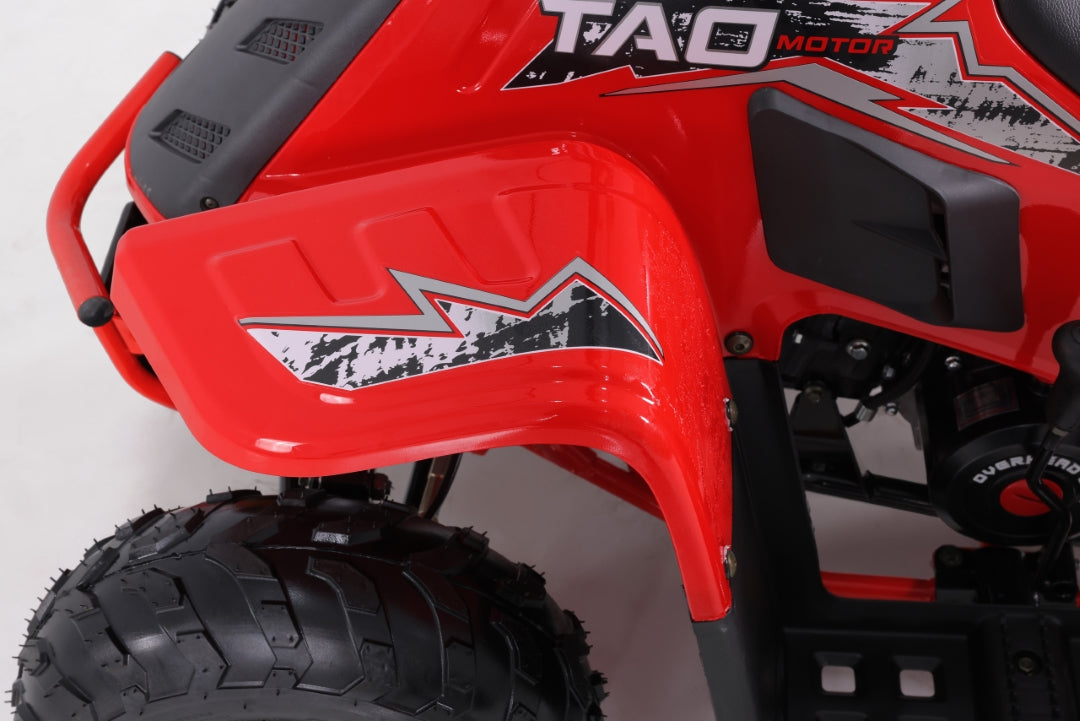

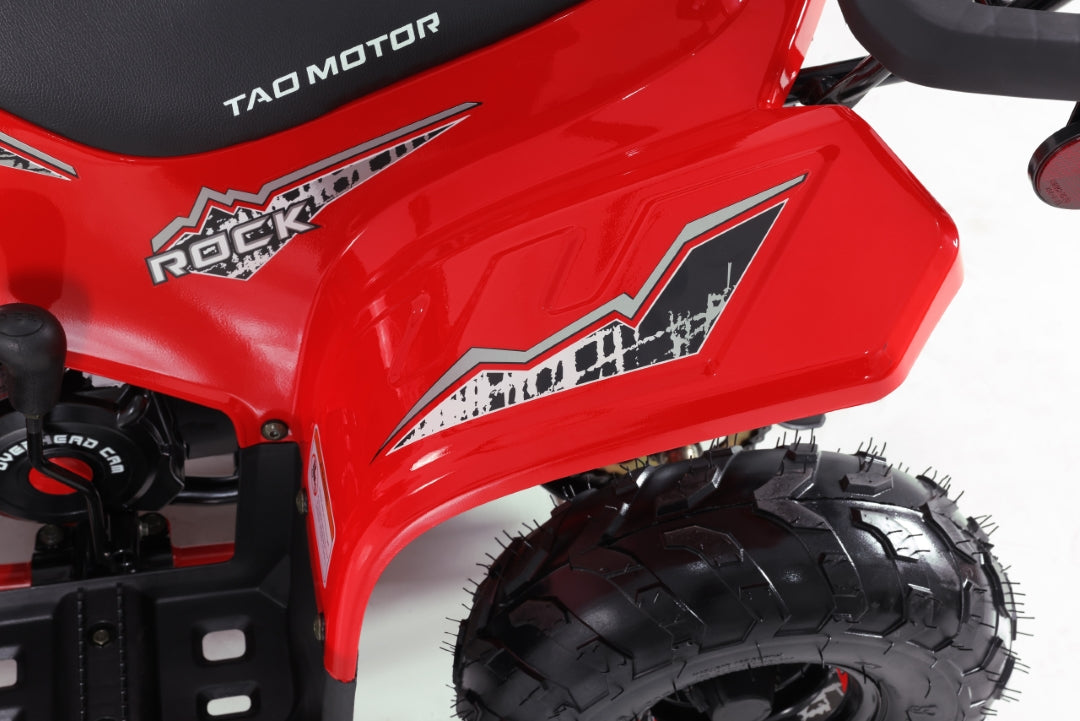

- New decal design with new colors
- Color-matched wheel decals

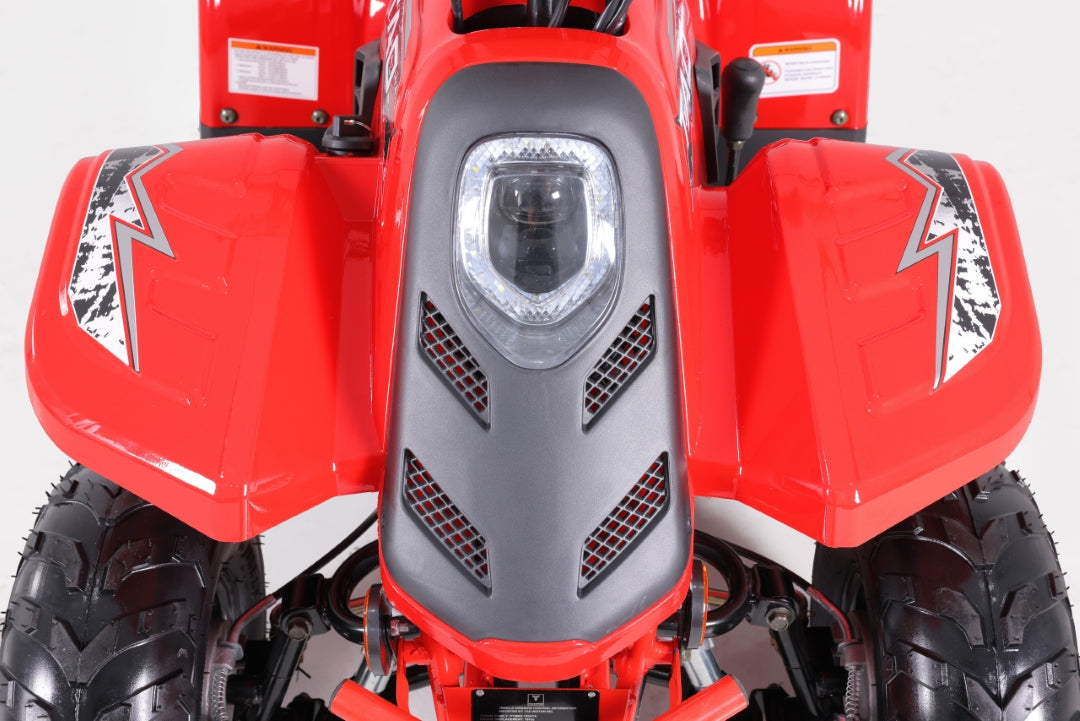

- LED daytime running lights (DRL)
WEIGHT AND DIMENSIONS
-
Vehicle weight : 83 Kg (183 pounds)
-
Vehicle dimensions : 132 x 74 x 84 cm ( 52 x 29 x 33 inches)
-
Box weight : 104.5 kg (230 pounds)
-
Box dimensions : 114 x 69 x 60 cm ( 45 x 27 x 23.5 inches)
- Seat Height: 58.5 (23 inches)
- Ground clearance: 7 cm (2.75 inches)
